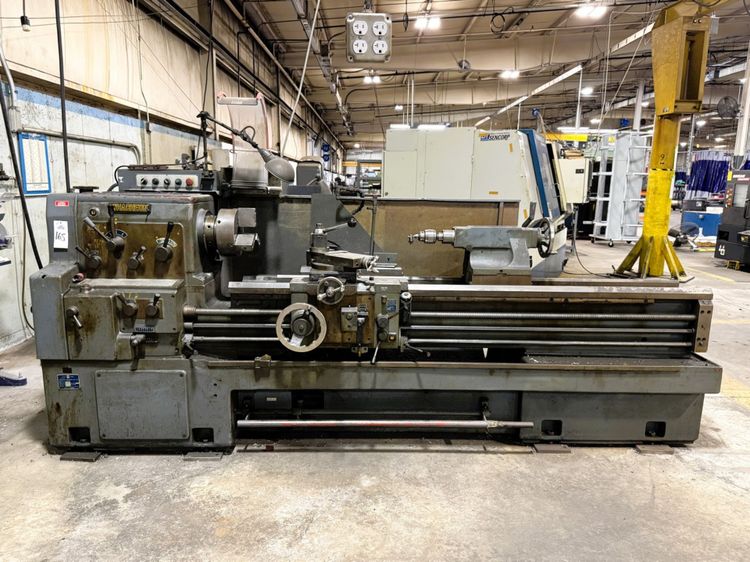

Whacheon Engine Lathe 1,350 RPM 20-1/2" G x 80"

Swing Over Bed and Carriage Wings: 20-1/2"
Swing Over Gap: 29-1/2"
Length of Gap: 7-5/8"
Swing Over Cross Slide: 11-3/4"
Distance Between Centers: 80"
Spindle Hole: 2-3/64"
Spindle Nose Camlock: D1-6
Headstock Spindle Center Taper: #4 Morse
Spindle Speeds: 28 - 1,350 RPM
Feed Changes Longitudinal: .0010 - .0196 IPR
Threads, Inch: 4 - 80 TPI
Threads, Metric: .25 - 7 mm
Tailstock Spindle Center Taper: #5 Morse
Tailstock Spindle Travel: 6"
Approximate Dimensions: 137" x 54"
Approximate Weight: 7,500 lbs
Removable Gap Bed
Inch and Metric Threading Capability
Hardened and Ground Bed Ways
Three-Jaw Chuck
Quick Change Toolpost with Holder
Full Length Foot Treadle Operated Spindle Brake
Threading Dial
Micrometer Carriage Stop
Jacobs Drill Chuck for Tailstock
Self-Contained Coolant System with Full Length Rear Splash Guard
Spindle Drive Motor: 10 HP, 3/60/220-440 Volt
Electrical Controls
