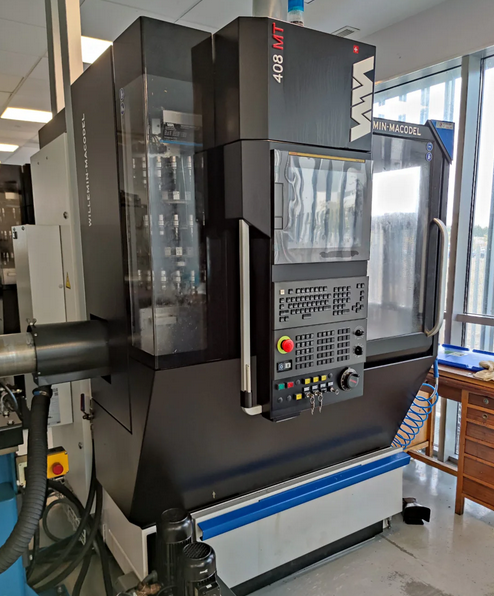

Willemin Macodel 408 MT 7 Axis

X-axis travel 250 mm
Y-axis travel 200 mm
Z-axis travel 310 mm
A axis 360°
B axis -45° / +115°
7 total axes
5 simultaneous axes
Resolution 0.001
B-axis resolution 0.0001
72-position tool magazine
Tool length 95 mm
Tool diameter with free adjacent pockets 80 mm
Maximum tool weight 1 kg
Tool change time 0.8 s
BLUM Z-MT tool measuring device
Renishaw OMP 400 + AXISET HD-TB automatic non-contact measuring device
Coolant system
Bar loader LNS Super Hydrobar
Bar capacity 32 mm
HSK E-40 spindle nose
Stepless spindle speed 500 - 30,000 rpm
Total power 16 kVA
Voltage 3x400 V 50 Hz
Machine weight 2100 kg
Machine dimensions 1840 x 2450 x 1385 mm
