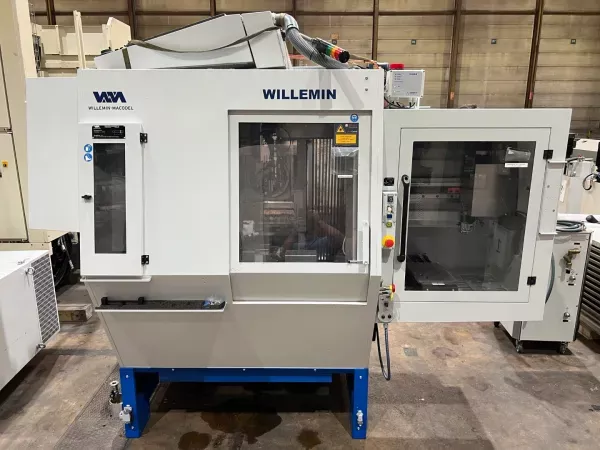

Willemin Macodel W 408B CNC 5 Axis

Ref : 2752916-3-AW
Condition : Used
Manufacturer : Willemin Macodel
Model : W 408B CNC
Nb Of Axis : 5 Axis
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Axis travel X: 250 mm
Axis travel Y: 200 mm
Axis travel Z: 300 mm
Rapid feed X/Y/Z: 30 m/min
Feed force X/Y/Z: 3700 N
Resolution X/Y/Z: 0.0001 mm

B axis angular travel: -15° to 100°
B axis angular travel (with tailstock): -20° to +45°
B axis angular travel (tailstock removed): -20° to +90°
B axis max speed: 20 rpm
B axis torque: 750 Nm
B axis hydraulic clamping: 50 bar
B axis holding torque: 300 Nm
B axis resolution: 0.0001 mm

Milling spindle type: HSK E40
Milling spindle power (100%): 10 kW
Milling spindle power (25%): 15 kW
Milling spindle torque (100%): 8 Nm
Milling spindle torque (25%): 12 Nm
Milling spindle speed range: 50–30,000 rpm

A axis spindle type: A4
A axis bar capacity: 40 mm
A axis max speed: 35 rpm
A axis nominal torque: 112 Nm
A axis max torque: 238 Nm
A axis resolution: 0.0001°
A axis clamping pressure: 70 bar
A axis holding torque: 130 Nm

Tool changer discs: 2
Tool positions per disc: 24
Max tool weight: 1 kg
Tool disc rotation speed: 60 rpm
Max tool diameter (adjacent tools loaded): 50 mm
Max tool diameter (adjacent tools free): 63 mm
Max tool length: 95 mm

Secondary slide travel: 80 mm
Secondary slide feed force: 1700 N
Tilting moment: 90 Nm
Secondary slide resolution: 0.0001°
Tilting hydraulic pressure: 100 bar
Workpiece manipulator vertical slide diameter: 25 mm
Manipulator stroke: 710 mm
Linear travel per motor revolution: 70.4 mm/rev
Max transfer speed: 60 m/min
Max workpiece weight: 5 kg
Max manipulator stroke: 1120 mm (2×560 mm)
Max vertical stroke: 150 mm
Part pick-up Ø/length: Ø32 mm / 100 mm
Part ejection Ø/length: Ø32 mm / 100 mm
Accuracy: ±0.05 mm
Gripping force: 45 N (at 6 bar)
Max gripper opening: 14 mm (2×7 mm)
Operating air pressure: 6 bar
Hydraulic system pressure: 95–105 bar
Coolant tank capacity: 80 liters
Chip tray capacity: 30 liters

Operational kinematic viscosity: 10–15 cSt
Extraction system
Fire extinguishing system
Probe
Coolant unit
Oil cooler
Data backup
Complete documentation
