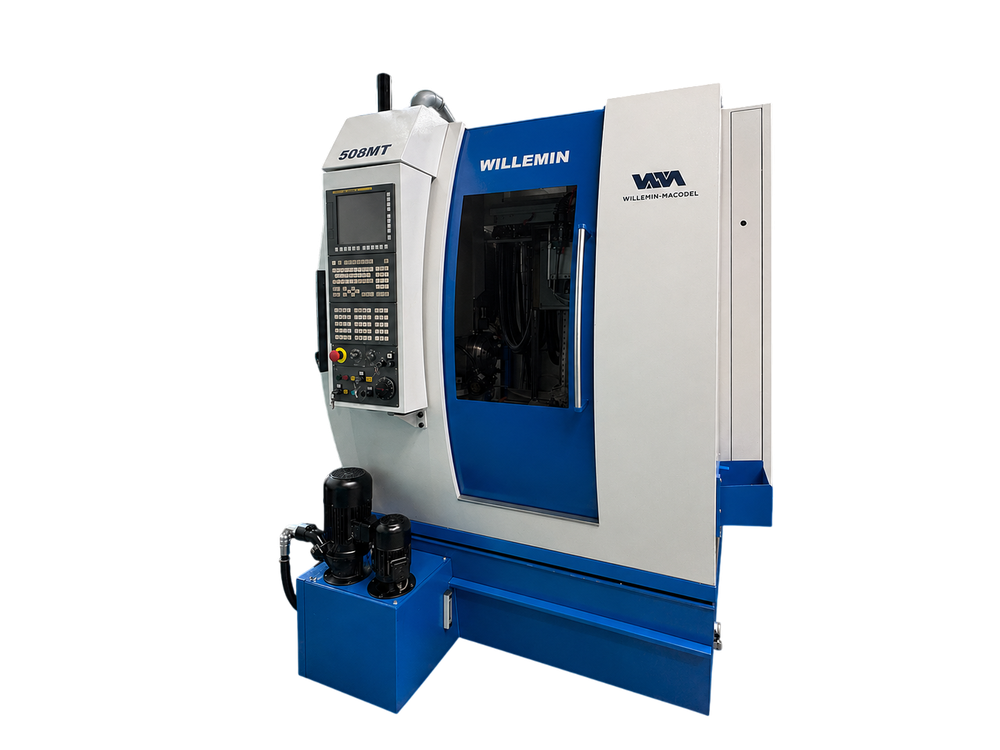

Willemin Macodel W508 MT

CNC machining centre WILLEMIN 508MT



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2016
CNC control: FANUC series 31i-B5
Number of simultaneous axes: 5
Stroke X axis: 450 [mm]
Stroke Y axis: 200 [mm]
Stroke Z axis: 425 [mm]
Traversing feeds X, Y and Z axes: 40000 [mm/min]
Axes acceleration: 10 [m/s²]
Max. bar diameter in turning spindle: 42 [mm]
Main spindle max. speed: 6000 [rpm]
Main spindle max. power: 7.5 [kW]
Angular A axis stroke: 360 [°]
Resolution A axis: 0.001 [°]
Drive A axis: Torque-motor
Spindle taper A axis: A4
B axis swivelling stroke: -15 [°] / +100 [°]
Resolution B axis: 0.001 [°]
Drive B axis: Torque-motor
Spindle type: HSK-E40
Max. spindle speed: 42000 [rpm]
Tool changer magazin number of stations: 72
Max. tool lenght: 150 [mm]
Max. tool diameter: 80 [mm]
Tool change time: 1 [sec]
Chip to chip time: 3 [sec]
Lubrication tank capacity: 150 [l]
Collant pump flow rate: 60 [l/min]
Rated current: 50 [A]
Total power required: 35 [kVA]
Supply voltage: 400 [V]
Working hours: 9701 [h]
Machine weight: 3300 [Kg]

More information upon request.
