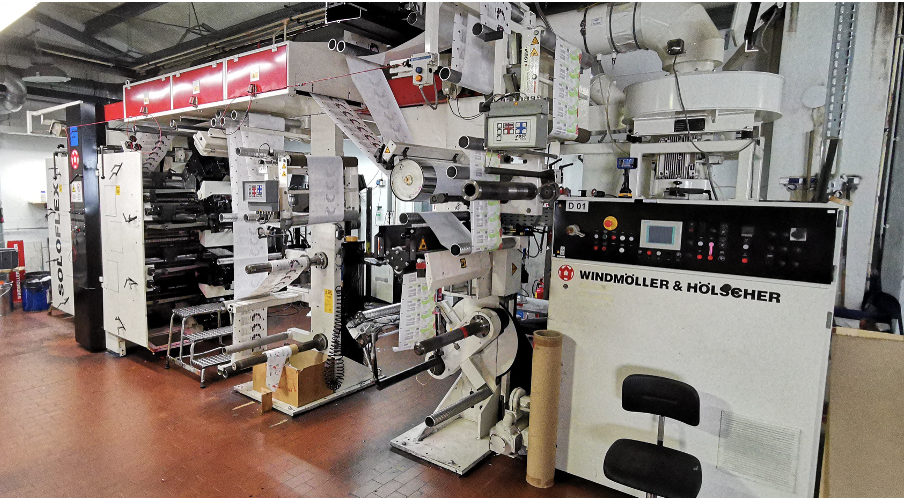

Windmoller & Holscher Soloflex 8f 8 600 mm

Technical data and equipment:
8 printing units
Material width: 620 mm”
Printing width: 600 mm
Printing lengths: 250 – 520 mm

Materials:
PA: 20 – 60 µm
LDPE: 20 – 150 µm
HDPE, OPP and similar materials: 12 – 80 µm, max. 120 µm
Laminated films
Paper: 25 – 120 g/m²
Mechanical machine speed: max. 200 m/min (depending on material)

Main equipment:
Impression cylinder, new nickel-plasma coating
Temperature control unit for impression cylinder
Non-stop unwinder with web tension measuring and control system, including drop-splice unit, roll Ø 600 mm, core ID Ø 76 mm
Nip roller before the 1st printing unit
8 doctor-blade printing units
Speed Assist
Drive parts from the printing unit to the bridge
Intercolor dryers
Web guiding before printing
Bridge with bridge dryer
Web video inspection system
Edge guiding before rewinding with 3 slitting discs and suction
Non-stop rewinder with pneumatic cutting device and web tension measuring and control system, roll Ø 600 mm, core ID Ø 76 mm
8 chamber doctor blades and 8 additional doctor blades, coated
8 electric pumps, new
8 ink containers, 10 L each, including hose connections, new
8 ink catch trays and 4 additional trays
1 service trolley for anilox roller and sleeve handling
1 service trolley for chamber doctor blades and ink trays
8 printing sleeve cylinders, new, print length 320 mm, make: Rotec Conductive Blue Light
8 format gears, new, print length 280 mm
8 ceramic anilox roller sleeves, new.
The base bodies were ordered from Apex. Company Wareg will procure the required sleeve type directly from Apex;
only in the case of supplying UniFlex rollers will Wareg bear the additional costs.
Compliance with ATEX regulations
New Siemens S7 control system
