WINUS C2-W11 Ready GLYCOL WATER COOLER
EUROPE (Western and Northern)

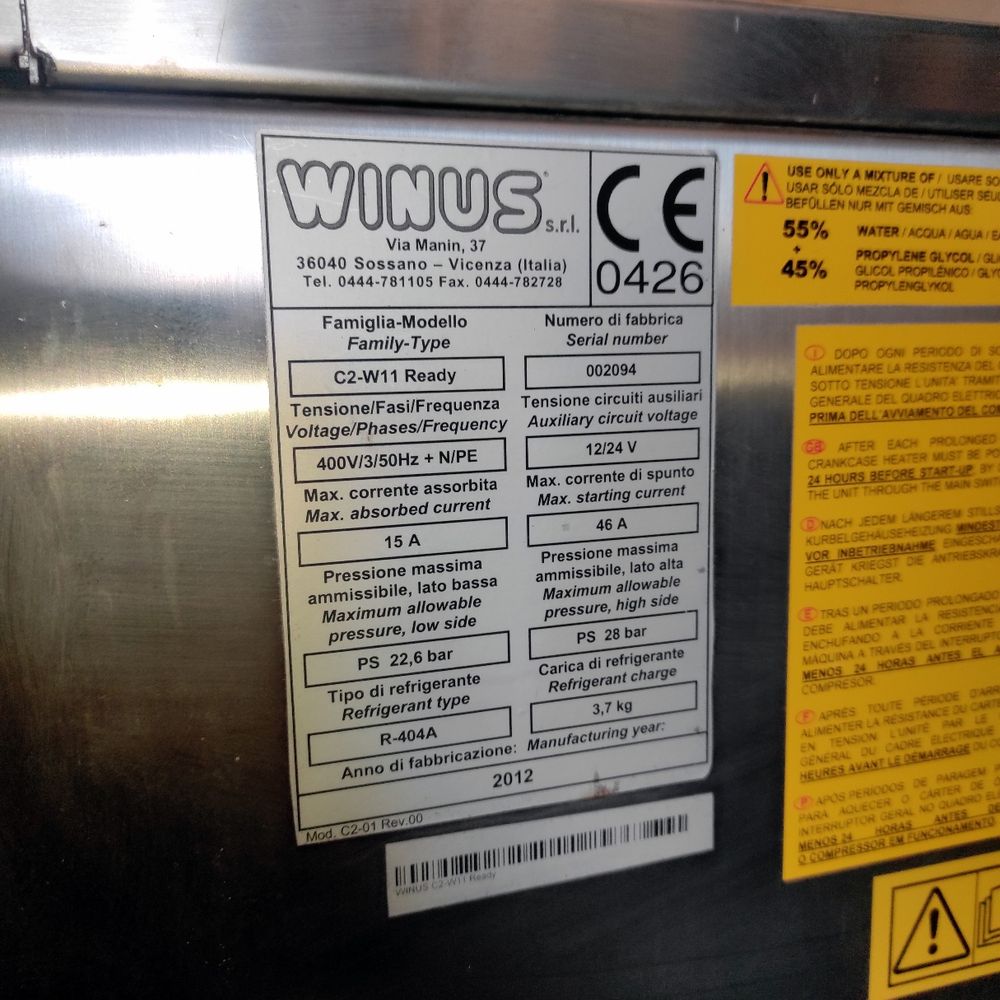

REF-0 WINUS C2-W11 READY GLYCOL WATER COOLER
Brand: WINUS
Model: C2-W11 Ready
Serial no.: 002094
Year: 2012

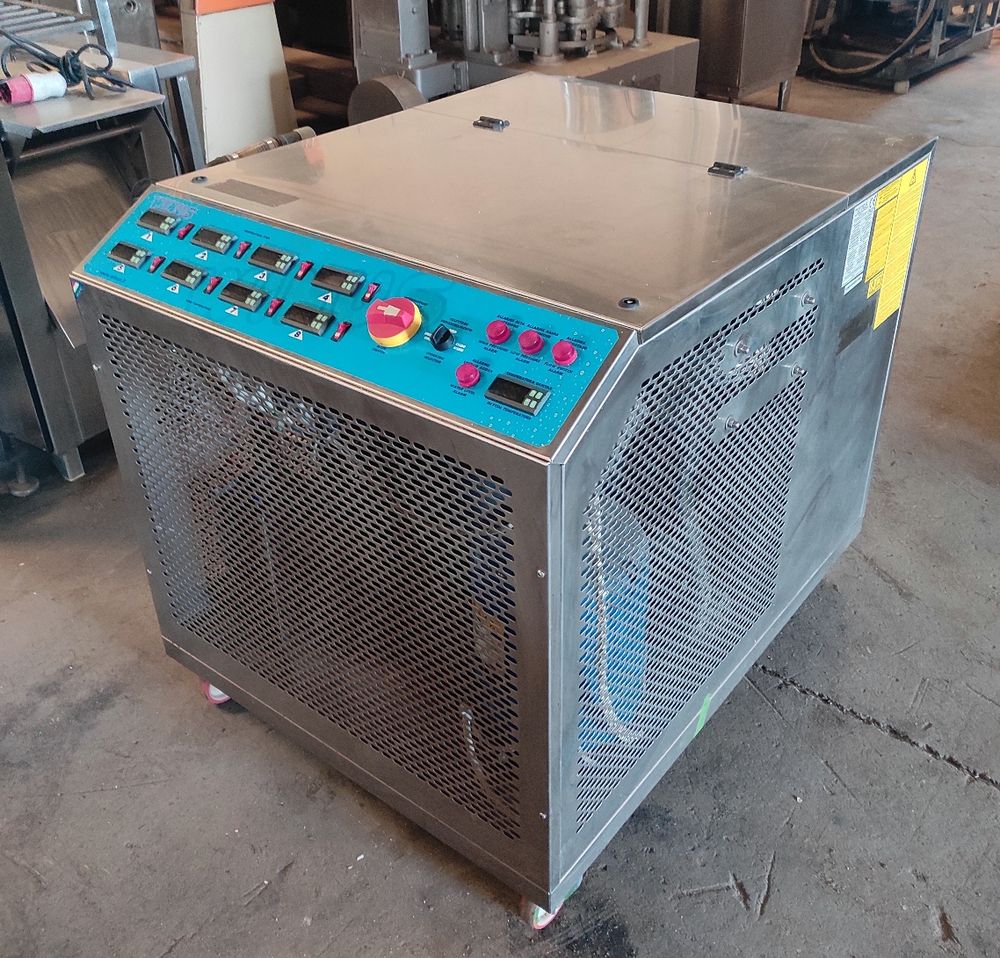

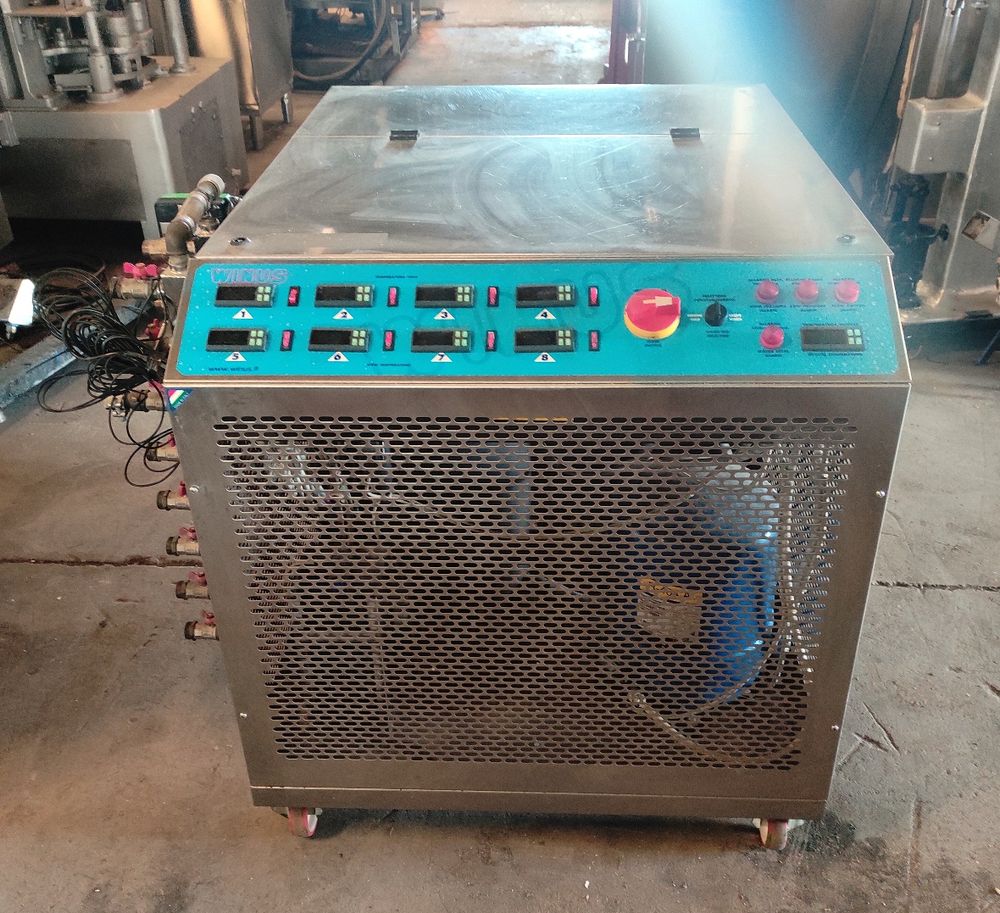

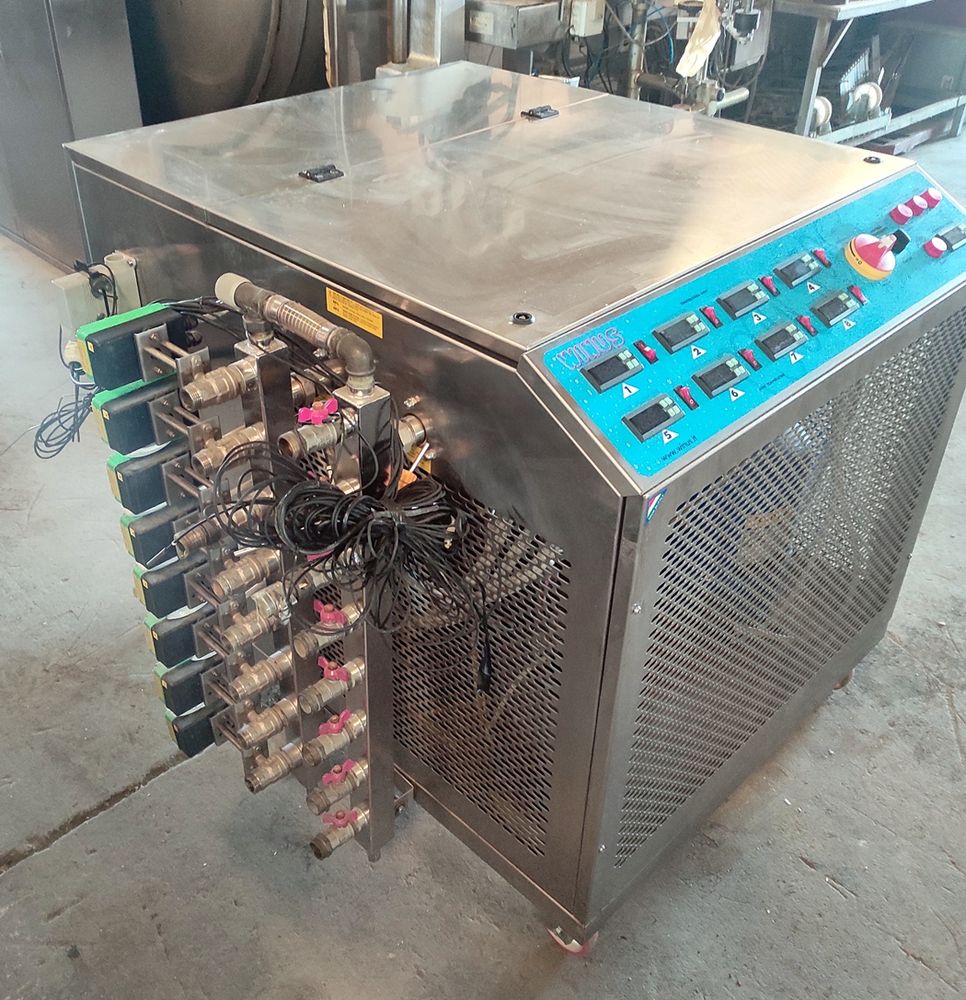

Glycol water chiller for different applications. It controls automatically the temperature of both the glycol and the product.

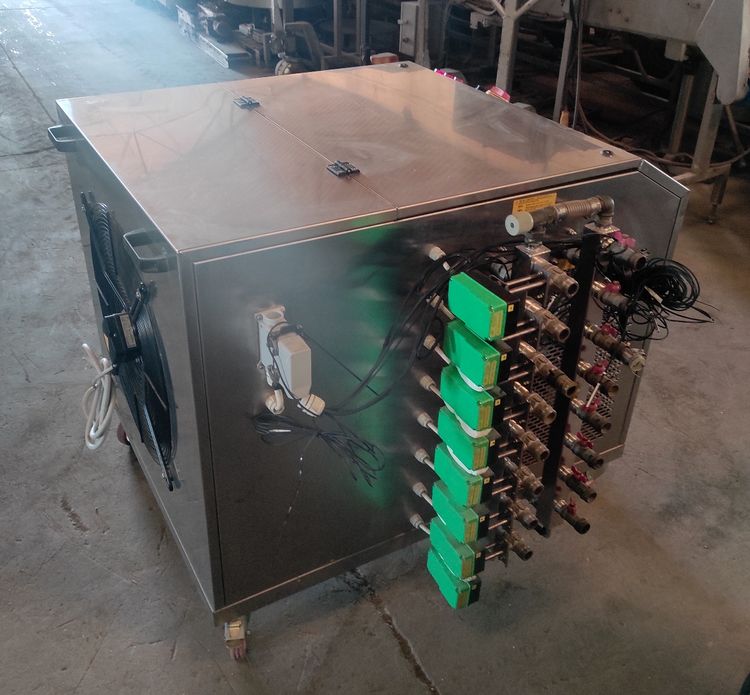

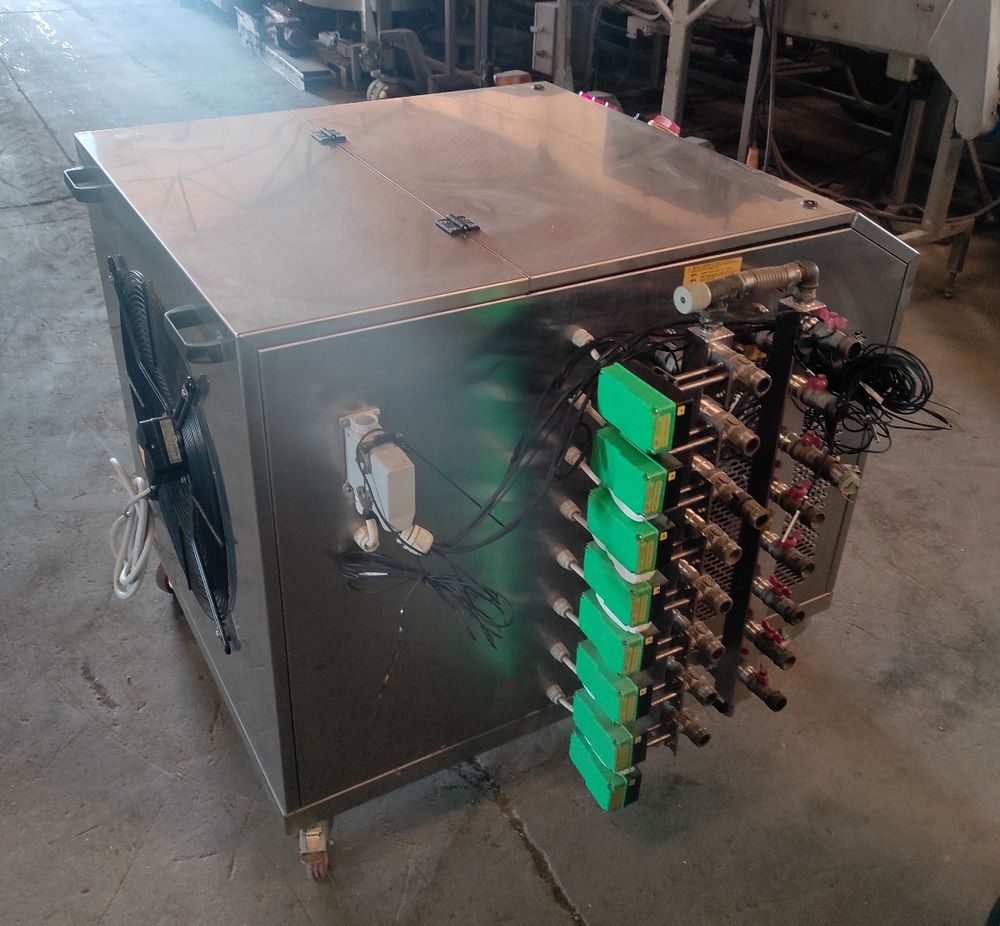

Suitable for up to 8 connections.
Complete with all the accessories of the hydraulic circuit, including the circulation pump, the storage tank and their respective safety devices.
Power supply: 400 V/3P/50 Hz + N/PE
Auxiliary circuit voltage: 12/24 V
Cooling capacity (1) / (2): 11 kW / 4.5 kW
Refrigerant gas: R-404A
Refrigerant charge: 3.7 kg
Max. pressure low side/high side: 22.6 bar/28 bar
Air flow rate: 5,000 m3/h
Glycol water flow rate: 3,200 l/h
Overall dimensions (mm): 1,250 x 1,170 x 1,010 (LxWxH)
Weight: approx. 250 kg
CE marking
