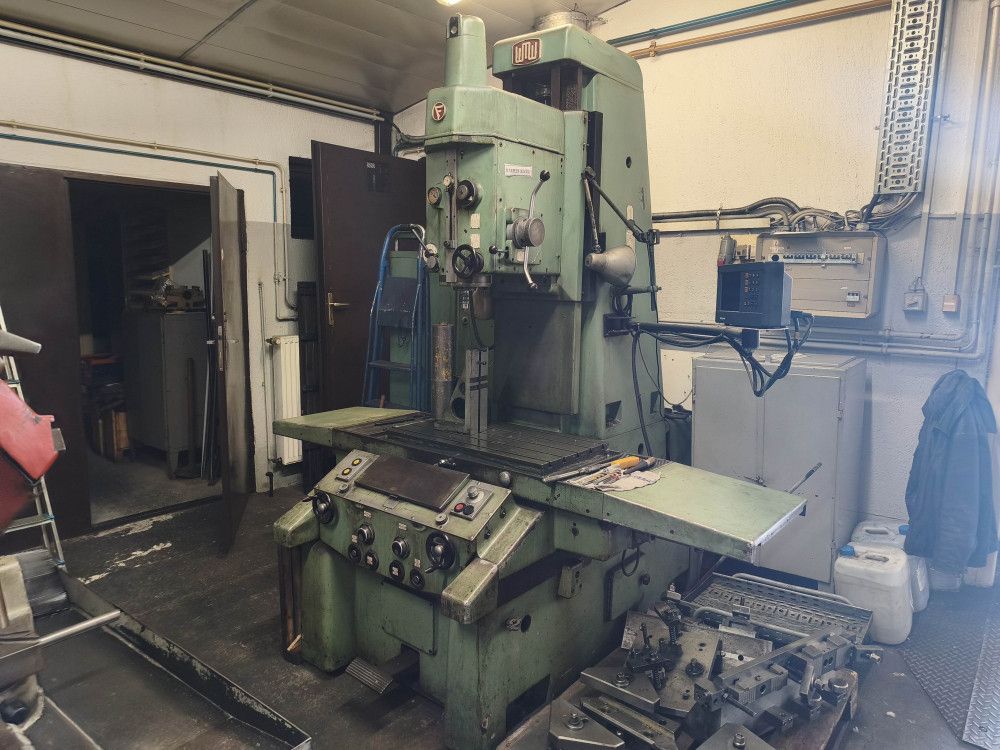

WMW BKOE 450x800 Variable

Usable table surface: 400 x 630 mm
Maximum permissible load: 125 kg
Number of clamping grooves: 6

Longitudinal table travel: 400 mm
Transverse table travel: 250 mm
Headstock height adjustment: 420 mm
Distance between table and spindle head: 40 – 560 mm
Horizontal extension of headstock: 365 mm

Adjustment speeds: 63 / 160 / 400 / 1000 mm/min
Drilling feeds up/down: 0.006 / 0.025 / 0.055 / 0.22 mm/rev

Spindle stroke: 100 mm
Sleeve diameter: 80 mm
Tool holder: MK 3
Maximum spindle torque: 200 kpcm
Maximum spindle power: 1.0 kW
Maximum axial force: 250 kp
Maximum drilling diameter: 100 mm
Maximum milling diameter: 80 mm

Pitch of adjusting drums: 1 mm
Glass scale division: 1 mm
Screen readability: 0.001 mm
Setting accuracy: ± 0.002 mm

Main motor power: 1.5 kW
Table adjustment motor power: 0.180 kW
Total connection value: 2.0 kW

Machine dimensions: 1,360 x 1,640 x 2,165 mm
Crate dimensions: 1,850 x 1,850 x 2,400 mm
Weight: 2,300 kg
