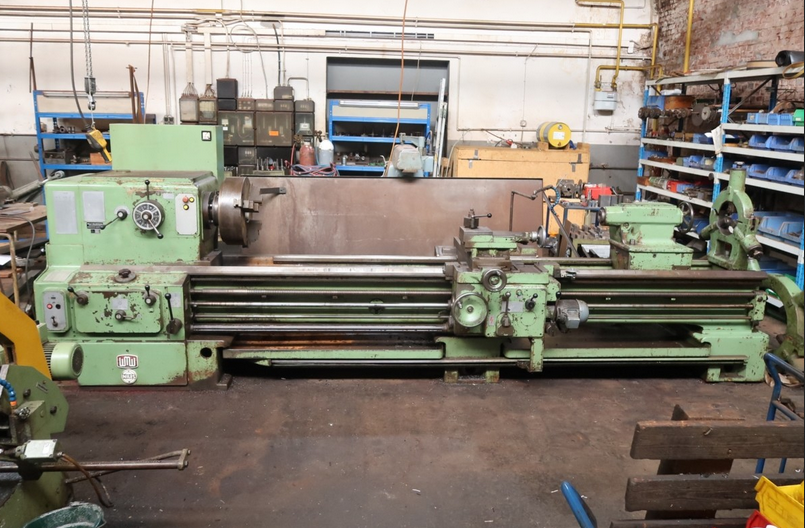

WMW Niles Engine Lathe 900 rpm DLZ 800 x 3000 L IV

WMW - NILES DLZ 800 x 3000 L IV
1971

Turning diameter over bed 800 mm
Turning diameter over support 530 mm
Turning length 3000 mm
Turning diameter in gap 850 mm
Center height over bed 380 mm
Bed width 550 mm
Spindle nose DIN 55022/8
Spindle bore 73 mm
Spindle speeds 18 - 900 rpm
Feeds 224 / 0.018 - 10 mm/rev
Thread pitch metric approx. 84: 0.2 - 224 mm
Total power requirement 17.5 kW
Machine weight approx. 8.6 t
Machine dimensions approx. 5.5 x 1.8 x 1.72 m
Condition: ready for demonstration
Electrical system 380 Volt
3-jaw wedge bar chuck 500 mm
Faceplate 720 mm
Faceplate 500 mm
Steady rest 450 mm
Steady rest 250 mm
Tool holder system Multifix type B
Longitudinal and face support rapid feed
Two-speed motor with pole-changing function
Single-lever control for all support movements
Preselector feed control
Hardened bed guideways
Double-beam bed for high rigidity
Raised front guideway and recessed rear guide in V-prism for accuracy
Triple bearing spindle
Thread cutting in metric, inch, and diametral pitch
Year of construction is estimated
