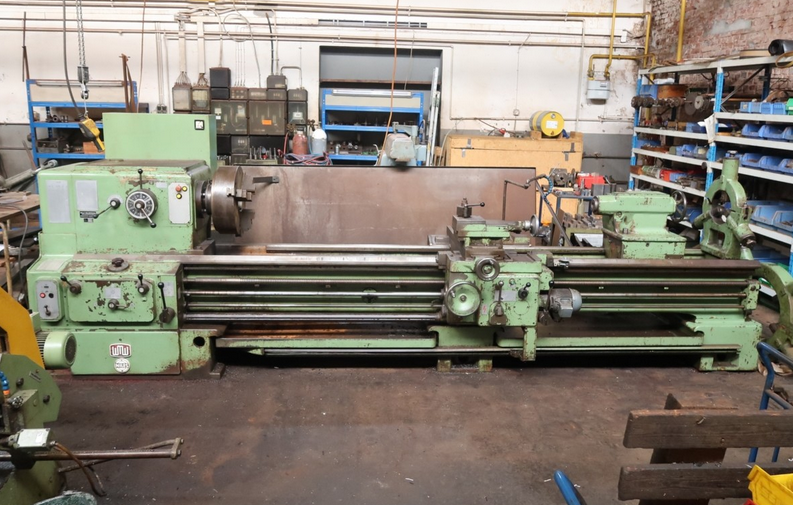

WMW Niles Engine Lathe 900 rpm DLZ 800 x 3000 L IV

WMW NILES DLZ 800 x 3000 L IV
1971

Turning diameter over bed: 800 mm
Turning diameter over slide rest: 480 mm
Turning diameter in gap: 850 mm
Turning length: 3000 mm
Center height over bed: 380 mm
Bed width: 550 mm
Spindle bore: 73 mm
Spindle head: DIN 55022/8
Spindle speeds: 18–900 rpm
Feed rates: 224 / 0.018–10 mm/rev
Thread pitch (metric): approx. 84 / 0.2–224 mm
Total power requirement: 17.5 kW
Machine weight: 8600 kg
Machine dimensions: 5.5 × 1.8 × 1.72 m
Control: Conventional

3-jaw chuck 500 mm
Faceplate 720 mm
Faceplate 500 mm
Fixed steady rest 450 mm
Fixed steady rest 250 mm
Tool holder system Multifix Type B
Pole-changing spindle motor
Single-lever control for all movements
Pre-selected feed rates
Hardened bed guides
Double-tiebar bed design
Triple spindle bearing
Threads in mm, inch, and diametral pitch
