Wohlenberg Champion S 21

This 2006 Wohlenberg Champion S 21 perfect binding system is a complete inline book production line
designed for efficient gathering, binding, trimming, and stacking of perfect bound books and brochures.
The system includes a 28-station gatherer, Champion S 21 clamp binder, cooling tower, three-knife trimmer,
and automatic stacker for streamlined production from signatures to finished stacks.
The binder is equipped with PUR adhesive capability utilizing a Nordson drum premelter and also includes an EVA glue pot for hot melt binding.

Line Configuration:

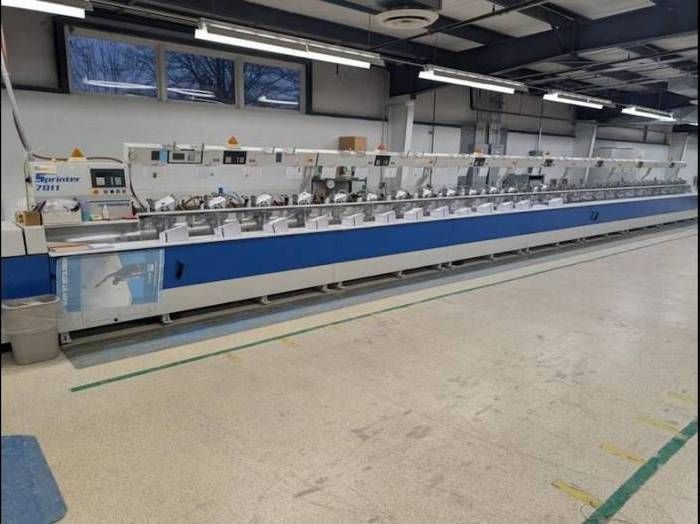

Sprinter 7011 28 Station Gatherer
Champion S 21 Clamp Perfect Binder
Cooling Tower Conveyor System
Perfecta Trimm Star 110 Three Knife Trimmer
Rima RS 3310S Automatic Book Stacker
Champion S 21 Perfect Binder

The Wohlenberg Champion S series is a high performance clamp perfect binder designed for the production of books and brochures using hot melt, cold glue, or PUR adhesive systems.
The S 21 configuration provides 21 clamps and is capable of producing a wide range of book formats and thicknesses.
The machine features PLC based controls, spine milling preparation stations, precision cover feeding and creasing,
and accurate cover registration and pressing for consistent finished book quality.

System Components :
Sprinter 7011 Gatherer with 28 Feeders
Champion S 21 Clamp Perfect Binder
Nordson PUR Drum Premelter
EVA Glue Pot
Integrated Cooling Tower
Perfecta Trimm Star 110 Three Knife Trimmer
Rima RS 3310S Two Directional Stacker
Inline Conveyor System
Two 400 Volt Transformers (Binder and Gatherer)

Capabilities :
Automated signature gathering and book block formation
Spine milling and preparation prior to gluing
PUR or EVA adhesive binding
Automatic cover feeding and spine creasing
Inline book cooling prior to trimming
Three knife trimming for finished book size
Automatic stacking of completed books

Typical Applications:
Paperback books
Catalogs and manuals
Perfect bound magazines
Instruction books
Commercial print runs
Highlights

Complete inline perfect binding system
28 station signature gatherer
Champion S 21 clamp binder
PUR drum premelter system
EVA glue pot capability
Inline cooling tower
Perfecta three knife trimmer
Rima automatic book stacker
PLC controlled binder system

Technical Specifications :
Clamp Configuration: 21 Clamps
Mechanical Speed: Up to 8,000 Cycles Per Hour
Maximum Clamp Opening Width: 90 mm (3.54 in)
Product Height: 140 – 485 mm (5.5 – 19.1 in)
Product Width: 105 – 320 mm (4.1 – 12.6 in)
Product Thickness: 2 – 62 mm (0.08 – 2.44 in)
Cover Height: 140 – 490 mm (5.5 – 19.3 in)
Cover Width: 208 – 645 mm (8.2 – 25.4 in)
Gatherer: Sprinter 7011 with 28 Feeders
Trimmer: Perfecta Trimm Star 110 Three Knife Trimmer
Stacker: Rima RS 3310S Automatic Stacker
Power: Includes Two 400V Transformers
