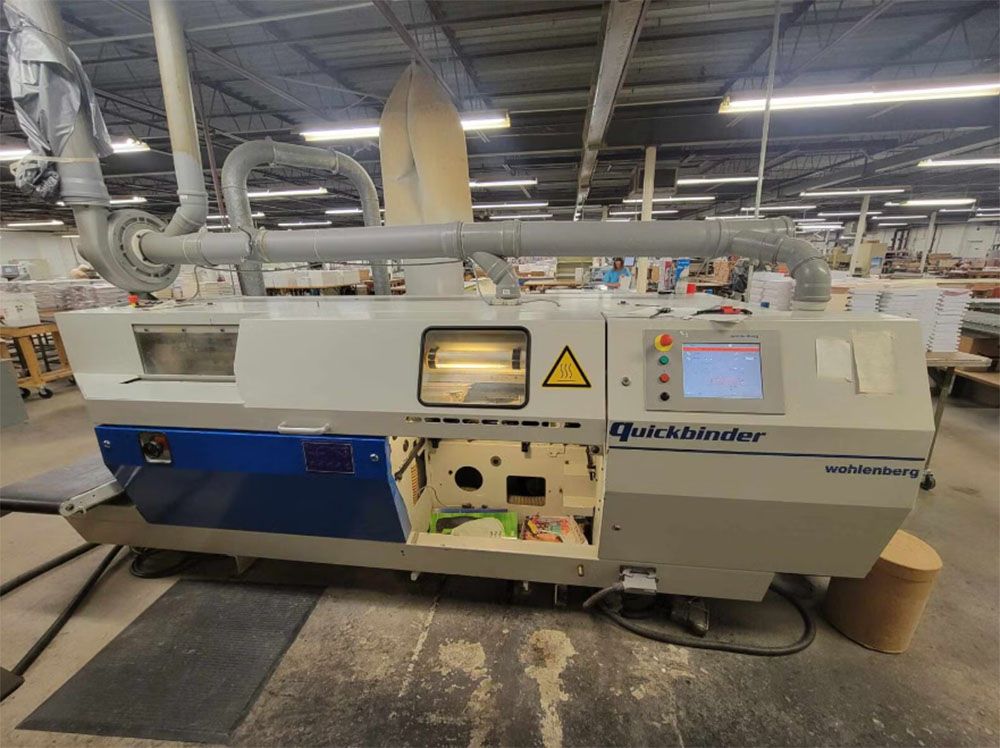

Wohlenberg Quickbinder

Cycle Speed 500-2,000 Cycles Per Hour
Product Height 4.33″-16.9″
Product Width 4.13″-12.59″
Product Thickness .078″-2.75″
Cover Height 4.33″-17.1″
Cover Width 8.18″-25.59″
Clamp Opening .047″-3.54″

Book Count // Approx. 2.8 million – Approx. 14,000 books per month over lifespan
(5) Coated clamps constructed on a (9) piece frame design
Combination multiple knife milling & dust spine preparation station
PUR spine gluing station with integrated pre-melter including : Automatic Scraper Control

Hotmelt side gluing area mounted to the spine gluing unit including:
Horizontal discs
Automatic scraper control

Rotary cover feeder with patented pumpless vacuum Winjector® technology
Compressed air for easy sheet separation

Cover aligning and pressing station with (1) pressing rail
Programmable feature allows book to stay in clamp for designated duration
Touch screen color display monitor including:
Motorized thickness adjustments of:
Handfeeding station
Clamp opening – infeed and delivery side
Front side gluing disc
Front scoring tool
Pressing station
Cross stacking delivery
Cover width adjustment – front and back
Optional, upgraded Gauzing technology
