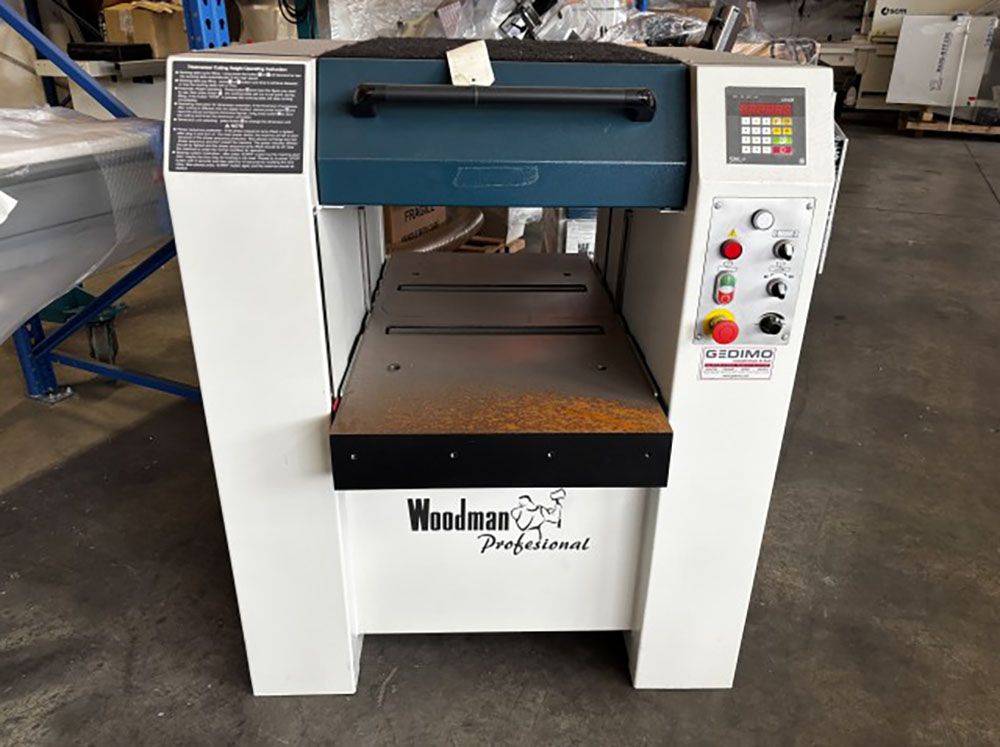

Woodman RC530NV

Ref : 2728194-15-MT
Condition : Used
Manufacturer : Woodman
Model : RC530NV
Year(s) : 2022
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

PLANER WITH ELECTRIC TABLE LIFT AND LOWER & VARIABLE FEED SPEED

MAKING CAPACITIES:
- Planing width: 530 mm
- Minimum/maximum working thickness: 5 to 300 mm
- Minimum working length: 230 mm
- Variable feed speed: 4 to 16 m/min

MACHINE COMPOSITION:
- Mechanically welded steel frame
- Cast iron table (LxW): 1000x530 mm on 4 slides
2 rollers in the table
- Electric lift and lower with digital indicator
- 4 knives 530x30x3 mm

OTHER FEATURES:
- Main machine power supply: 380V, three-phase, 50 Hz
- Automatic star-delta starting
- Main motor: 5.5 kW (7.5 hp)
- Drive motor: 2 kW (3 hp)
- Lift/lower motor: 0.25 kW (0.33 hp)
- 150 mm diameter suction port
- CE marked, padlockable disconnect switch
Front/rear palm switches
Dimensions in operating order: 1100 x 1100 x 1300 mm (43.3 x 43.3 x 51.1 in)
Weight: 550 kg
