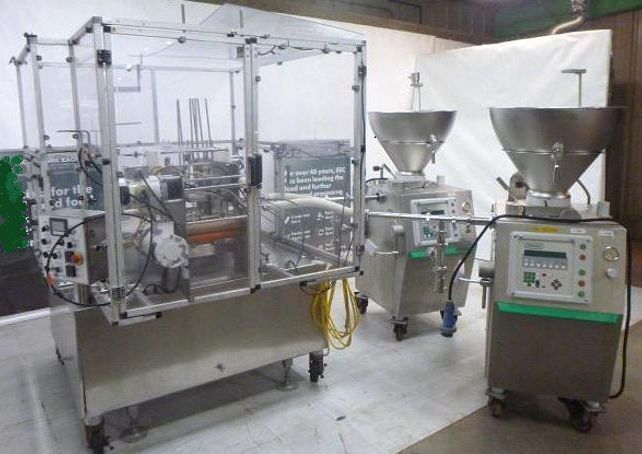

World Cup 16/32

ROTARY, VEMAG ROBBY, CONTROLGMC LIDDER FILL/SEAL/LID SYSTEM

Description
Brands: World Cup/Vemag/ControlGMC
Type: Cup Filling Sealing Lidding System

WORLD CUP SYSTEM DETAILS:
Brand: World Cup
Model: 16/32 Rotary
Sixteen (16) Pocket Dual Rotary
Up to Forty (40) Indexes per Minute (Eighty (80) Cups per Minute)
Has Cup Denester
Pre-Die Cut Seal/Film Applicator
Heat Sealer
Lidder
Discharge Station
Currently Setup is Four (4) Sets of Rectangular Containers
Drawings and Container Size Info Included (See attached pdf file)
Maximum Container Diameter: 4.75″ (121mm)
Maximum Container Volume: 32oz (907g)
Die Sets (available from the Manufacturer, containers can have almost any shape)

VEMAG ROBBY DETAILS:
Brand: Vemag
Sturdy and Reliable Vacuum Filler with Rotary Vane Pump
Filling Rate: up to 3,000 kg (6613.87 pounds) per hour, depending on feed element
Portion Weight: 5 to 60,000 grams (.01 to 132.28 pounds), can be set in increments of 0.1 g or 1 g
Portioning Speed: 650 Portions per Minute (depending on product, casing and portion size)
Rotary vane speed: 0-100%, Infinitely Adjustable
Links: 0-10, Infinitely Adjustable
Vacuum system: 20 Cubic Meters per Hour (706.29 Cubic Feet per Hour)
PC880 Controls

CONTROLGMC LIDDER DETAILS:
Brand: Control GMC
The FS1500 Lid Closing Machine is the perfect way to quickly and efficiently close lids on containers of all sizes
Range of 4 oz to 4.5 gal
Speeds up to 80 per minute
Semi Automatic
Motorized Conveyor with Sticky Belt for traction to pull the container under the Pressure Roller
Closing Head equipped with an air-removing wheel
