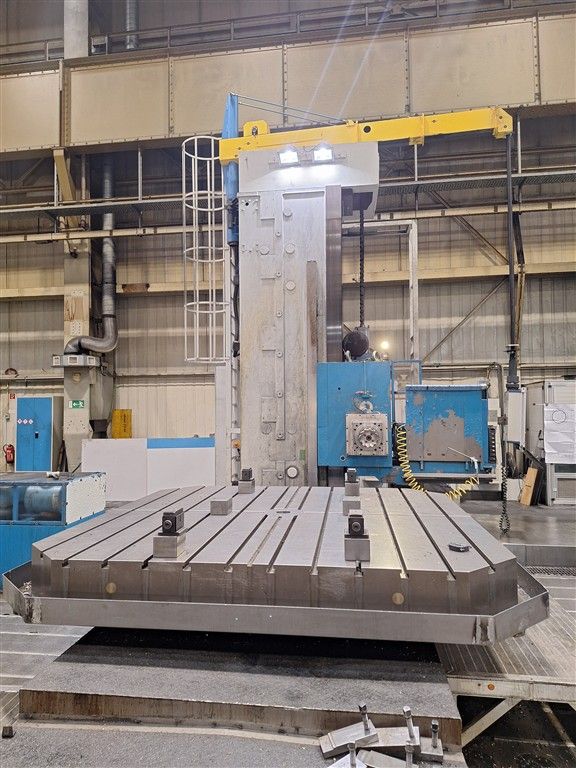

Wotan Rapid 5 C 700 mm 1250 U/min.

Ram-Type Floor Boring and Milling M/C
WOTAN Rapid 5 C
New in 1983/2010

Control CNC SIEMENS 840 D sl
spindle diameter 150 mm
x-travel 10000 mm
y-travel 2500 mm
bore spindle stroke 700 mm
ram stroke 700
dimension of the ram 340 x 340 mm
spindle taper ISO 50
Speed of boring spindles 1,25 - 1250 U/min.
feed speeds infinitely variable 1 - 5000 mm/min
rapid traverse 5 m/min
total power requirement 120 kW
weight of the machine ca. 115 t
dimensions of the machine ca. 15,1 x 10 x 6,4 m


with CNC SIEMENS 840 Dsl complete retrofit in 2010
FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity,
longitudinal movement 2500 mm,
angular milling head 4 x 90°
universal milling head
floor plate area ca. 10000 x 5000 mm
chip conveyor and coolant attachment
aerostatic guideways
