WP-20L-V4

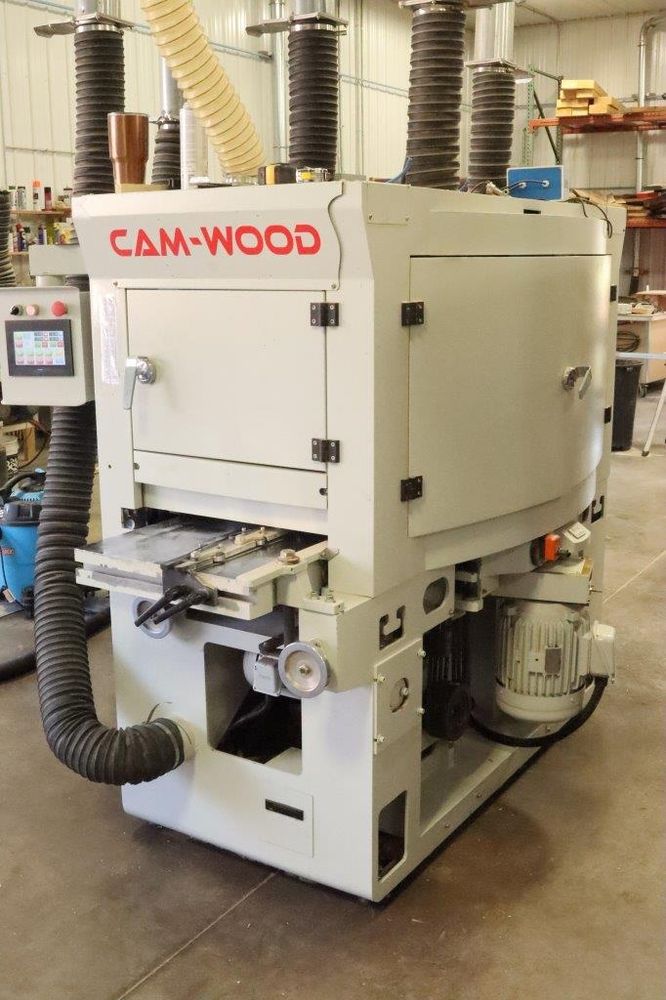

Cam-Wood Model WP-20L-V4 4-Sided Planer
Width Capacity: 3/4" to 20"
Thickness Capacity: 3/8" to 5"
Length: 20" Minimum and No Maximum
Maximum Cutting Depth; Top & Bottom Heads 1/2”, Side Heads 1”
Horizontal Top & Bottom with Slip-On Spiral Carbide Insert 15 x 15 mm x 3 degrees. Max depth of cut 1/2”
Vertical with Helical Max depth of cut 1”. Spindle arbor diameter: 40mm, Cutting Circle: 6 to 7"
Top and Bottom Cutter Heads Motors each: 15 HP, 5,000 RPM
Right & Left Side Cutter Motors each: 10 HP, 5,000 RPM
Feed is powered by (2) each 2 HP VFD feed motors, (1) motor drives the top infeed and (1) Motor drives the top outfeed feed rolls
Top powered feed rolls are air cylinder loaded / Floating. (4) idle bottom infeed feed rolls and (4) idle bottom outfeed rolls
Simple touch screen with Digital Positioning Controllers for width, thickness adjustment and variable feed speed
Hard Chrome plated table
Electrical 3PH; 480 Volt
Total HP 55 / Total Amps 61
