WSC-1000

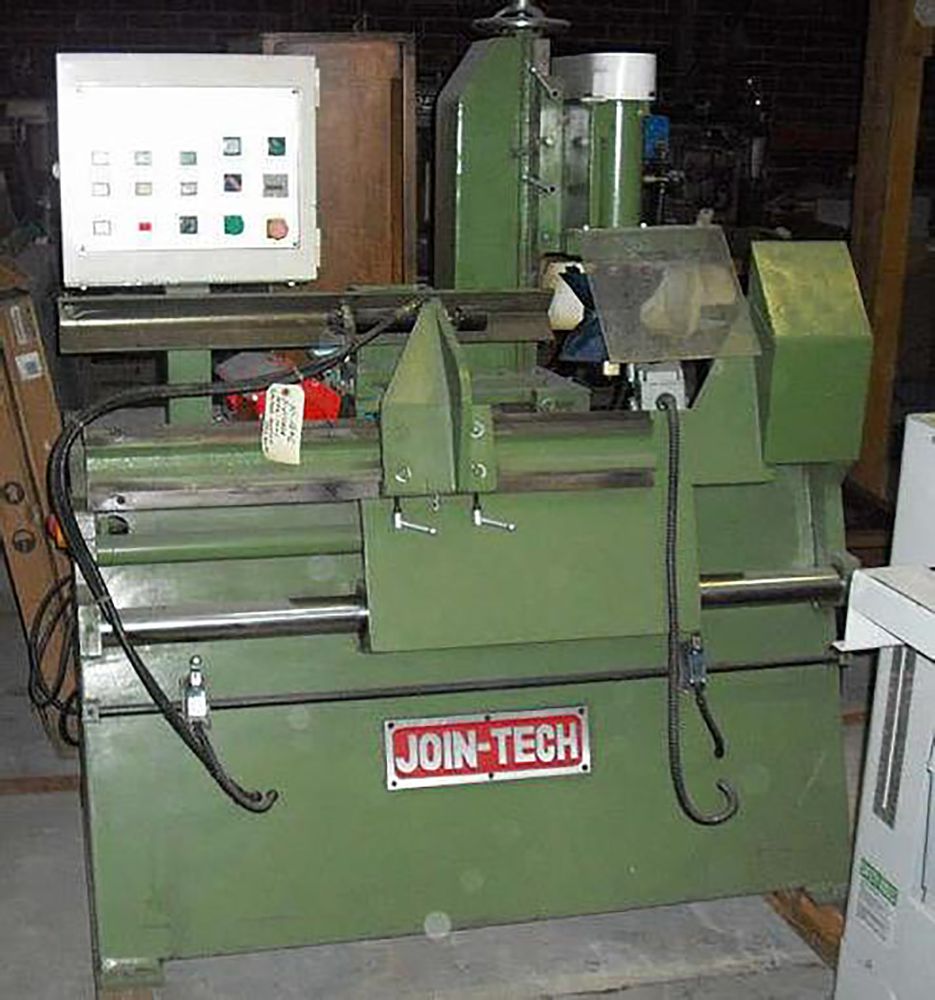

JOIN-TECH WSC-1000 SQUARE CUTTING/PROFILE SHAPING MACHINE
5.5 HP, 220/440/60/3 shaper motor
Approx. 6" long spindle capacity, (1-3/4" diam. / to be verified)
Hydraulic carriage moves the work-piece past the fixed cutter-head
~24" long part capacity with adjustable cutting length via limit switch
Head moves back hydraulically ~ 4" out the way for part loading
Vertical and horizontal adjustable shaper head
1 HP self contained hydraulic pump
Includes 4" corner cutter with edge relief. (4" down each side of turning)
Push-button controls with Semi-automatic and manual controls
Foot pedal cycle actuated
5" diameter dust outlet
52" x 36" x 66" approx. overall dimensions
Weighs approx. 1,500 lbs.
