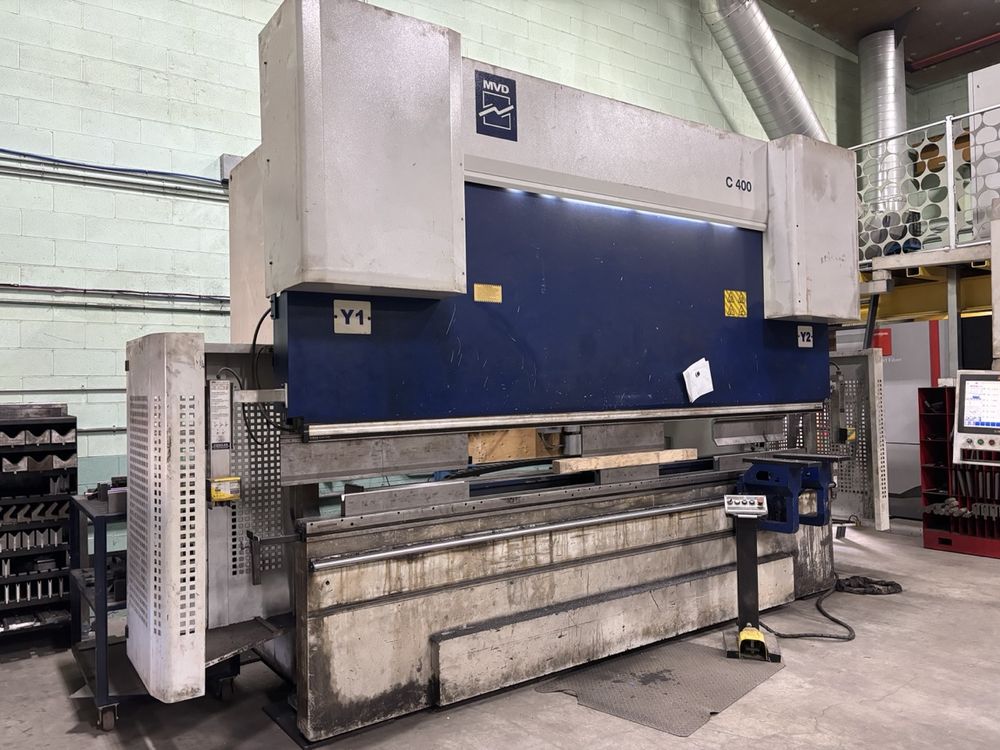

Wysong MVD C400-4300 400 Tons

Press Force 400 Tons
Bending Length 160 inches
Distance Between Housings 140 inches
Daylight 21 inches
Throat Depth 16 inches
Stroke 12 inches
CNC Control ESA S650 or similar
CNC Axes Y1, Y2, X, R (4-axes)
Back Gauge Accuracy ±0.03 mm
Back Gauge Range X: 750 mm, R: 250 mm
Hydraulic Clamping On the ram
Crowning System Motorized anti-deflection crowning system with Wila wedges
Tool Clamping Promecam-type quick clamp punch holder
Front Support Arms Sliding front sheet support arms
Safety Rear side protection covers and rear light barriers
Table Height 38.4″
Machine Dimensions 240″ x 105.3″ x 132.6″
Approach Speed 3.9 IPM
Return Speed 3.12 IPM
Bending Speed 0.312 IPM
Weight 22,500 KG
Main Motor 30 KW
