Davis Standard, Xaloy 6" pelletizing line

Davis Standard / Xaloy 6″ pelletizing line consisting of:

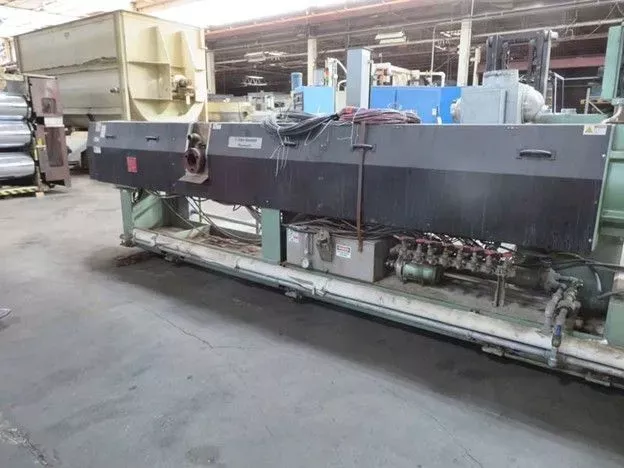

One (1) Davis Standard model 60IN60TPTH 6″ extruder having a 34:1 L/D ratio with a
seven (7) zone electrically, heated, water cooled (closed loop), and vented barrel at a
42″centerline. Serial Number 0022356-1-1. Oversized (8″) Gearbox is direct driven in a
wrap-around manner by a 500 HP D/C motor with
Siemens Simoreg Microprocessor SCR control mounted in a
stand-alone enclosure.
Gearbox has a reduction ratio of 11.
304:1 and is rated at 1050 HP at a service factor of 1.5.
Liquid cooling system with heat exchanger for gearbox protection.
Stand-alone control panel with sixteen (16) zones of
Eurotherm model 2408 digital temperature controllers with
separate stand-alone panel having Barber Coleman contactors.
Manufactured 9/2011.
Complete gearbox rebuilt by Texas Extrusion Services 4/2022

Xaloy model EH-80SH hydraulic slide plate screen changer having
two (2) nominal 8″ diameter breaker plates.
Mounted on a stand.
Includes 3 HP 230/460-volt hydraulic pump with 1155 cubic inch capacity accumulator.

Xaloy model WRP-35S Water Ring Pelletizing system with 3 HP Cutting Head mounted on
a stand, water reservoir with two (2) 1.5 HP water pumps, 7.5 HP slurry pump,
5 HP Spin Dryer, and control panel.
Also includes 48 x 48 x 50.5″ pellet bin with 2.5″ OD vacuum take off.
Bin is mounted on locking casters. Includes new cutter hub.
