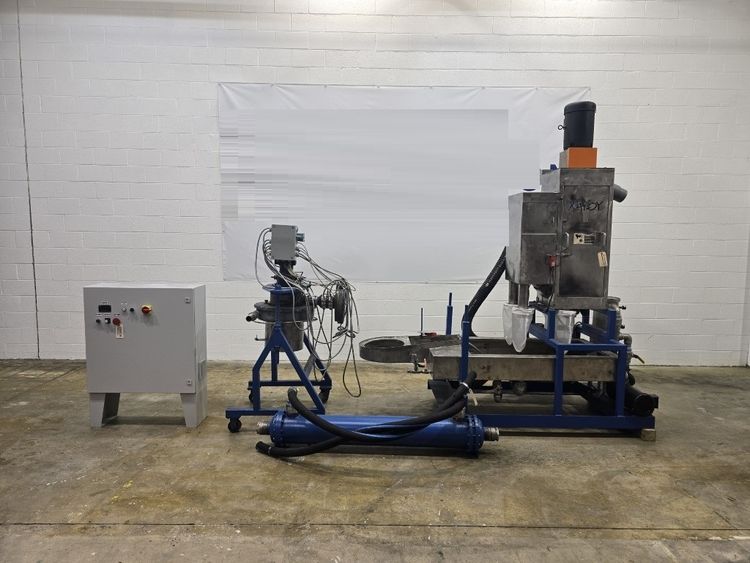

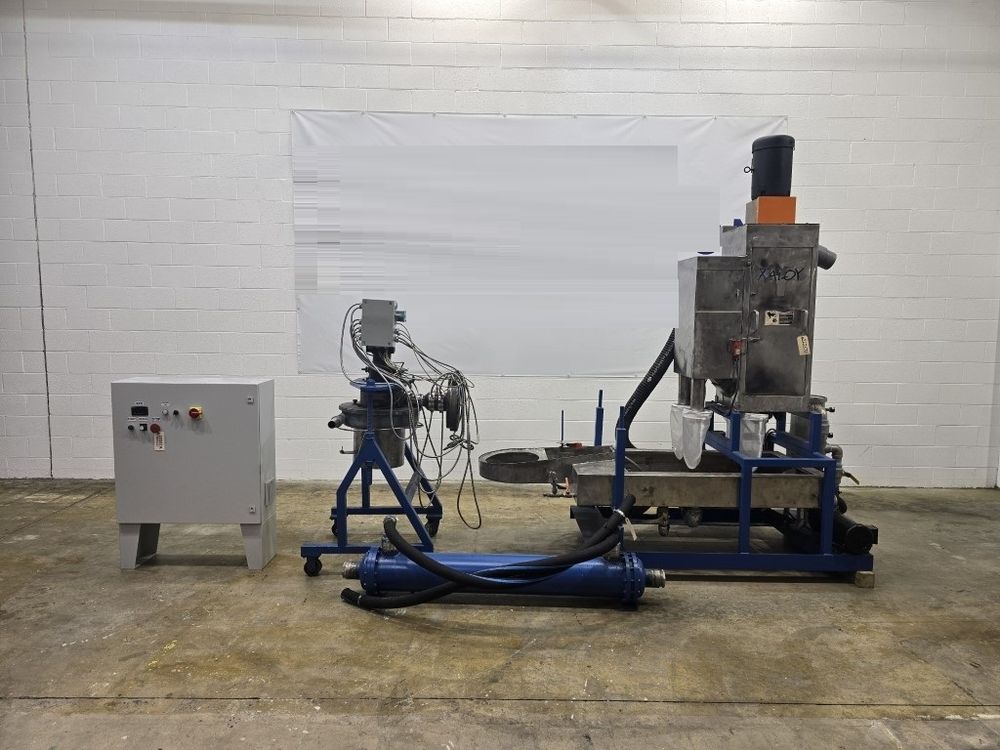

Nordson, Xaloy WRP35S Water Ring Pelletizer

Nordson/Xaloy Water Ring Pelletizer, Model WRP-35S, New in 2009
3 HP Cutting Head, Baldor Reliance VM3611 AC Motor
New Cutting Hub
460/3/60, 4.1A
1725 RPM, Frame: 184C
5 HP Carter Day Spin Dryer, 42” H x 10” Diameter, 2 Screens
Previously Running Polystyrene
7.5 HP Goulds Slurry Pump, Model: 3BF1H5C0, Size: 1.5 x 2 6
3500 RPM, 5.125" (5 1/8") Impeller Diameter
2" NPT Suction, 1 1/2" NPT Discharge
Baldor Reliance EJMM3616T AC Motor
460/3/60, 8.4A
3450 RPM, Frame: 184JM
480/3/60
Heat Exchanger
NEW MESH FILTERS ON DRYER
NEW HEATERS ON FLOW TUBE
NEW SEALS IN WATER PUMP AND SLURRY PUMP
NEW CONTROL PANEL
With Bag Filter Vessel - Model: MRBF-8"-15-2" NPTM/EB-304SS-VC-OEM-EP,
150 Max PSI, Max Temp. 158F, Max Flow: 90 GPM, New In 2009
Rated For 1,800-3,500 LBS/HR Per Manufacturer
System Wired For 480V AC With 24V DC Control Voltage
Triple Row Die
Previously Running Polystyrene On 6" Davis Standard Extruder
New In 2009, Refurbished In 2026.
The Water Ring Pelletizer ensures a consistent, uniform pellet and
is insensitive to short term polymer flow interruptions.
Pellets are cut and immediately quenched in a
unique cooling chamber design that transfers the pellet slurry to the spin dryer.
An integral dryer blower is standard for improved drying efficiency.
Typical applications include polymer reclaim, post-consumer recycling, and compounding.
