Nordson, Xaloy WRP-35

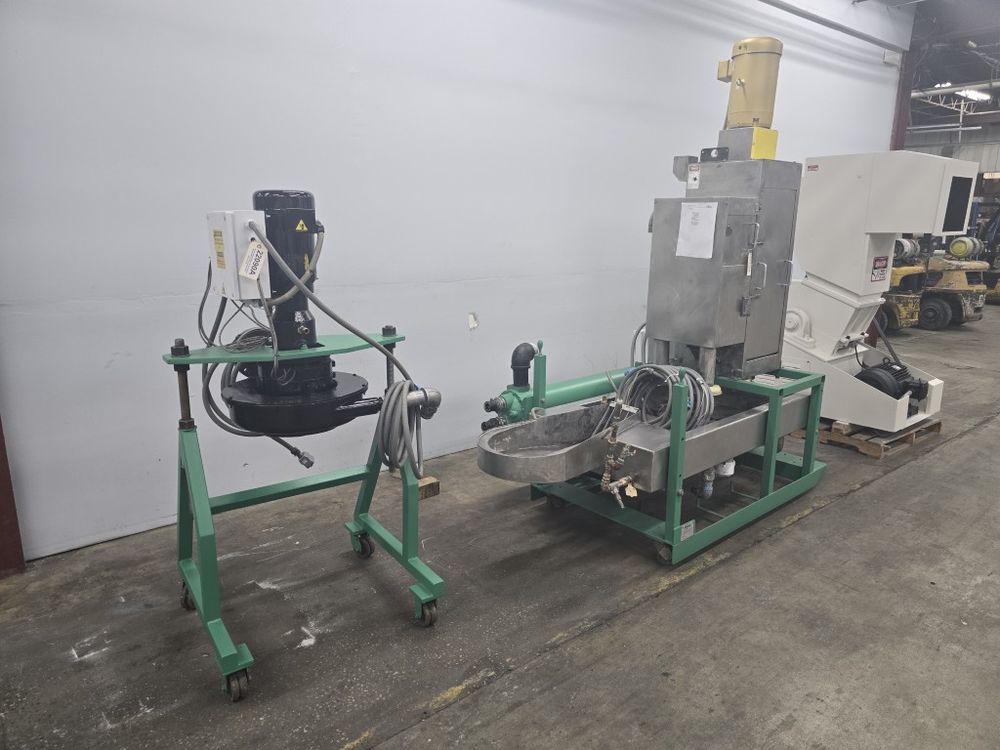

Nordson/Xaloy Water Ring Pelletizer, Model WRP-35, 3 HP Cutting Head, New in 2018
Centerline Height (Track Mounted): 36.5° – 45°
120 Hole, 3 Row Die
3 HP Cutter Head Motor, S/N: F1807263525
Baldor Reliance SuperE, Cat. No. VEM3611, 184C Frame
230V/460V – 8.4A/4.2A, 1760 RPM, TEFC Enclosure
37″ Long Water Bath
58″ Long x 10″ Diameter Heat Exchanger
Max Water Temp: 122°F
7.5 HP Slurry Pump, S/N: F1807133079
Baldor Reliance SuperE, Cat. No. EJMM3616T, 184JM Frame
230V/460V – 16.8A/8.4A, 3450 RPM, TEFC Enclosure
1.5 HP Circulation Pump, S/N: W1804303631
Baldor Reliance SuperE, Cat. No. VEM3550, 56C Frame
230V/460V – 3.8A/1.9A, 3500 RPM, TEFC Enclosure
42″ Tall x 10″ Diameter 2 Screen Dryer, 5 HP, Motor S/N: F2103045905
Baldor Reliance SuperE, Cat. No. VEM3708T, 215TC Frame
230V/460V – 14.4A/7.2A, 1165 RPM, TEFC Enclosure
SS304 Dewatering Trough To Cool Slurry Prior To Drying
Temperature Control Zones: (1) 3kW Die Body Heater,
(1) 1.25kW Die Plate Heater
Includes Refurbished Control Panel
System To Be Dry-Cycled Before Shipping
Rated For 1,800-3,500 LBS/HR Per Manufacturer
Approximate Cutting Head Dimensions: 46″ L x 40″ W x 70″ H
Approximate Water Ring Pelletizer Dimensions: 94″ L x 58″ W x 104″ H
