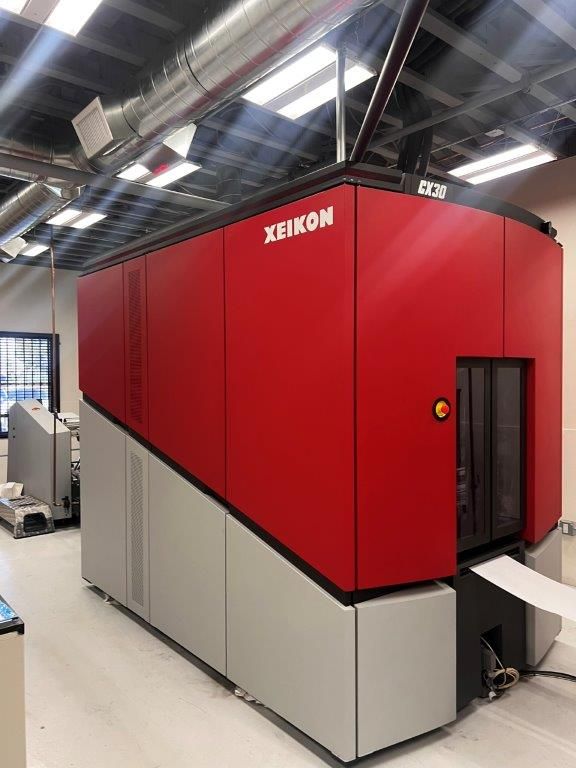

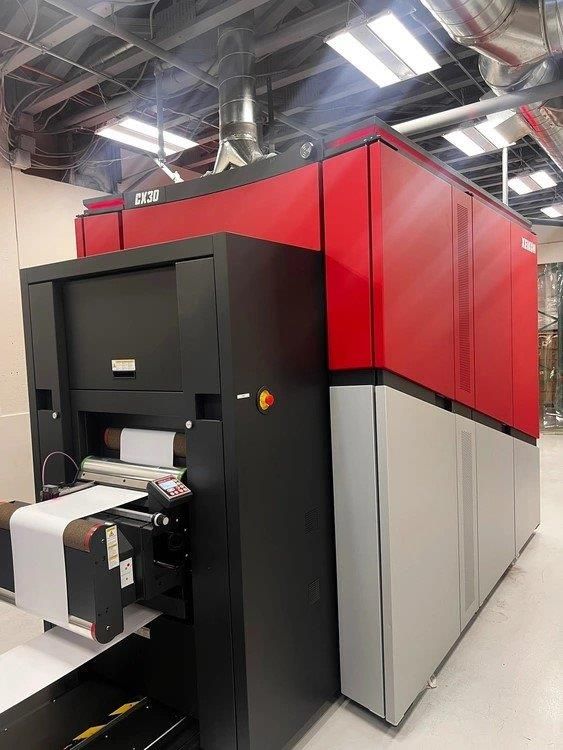

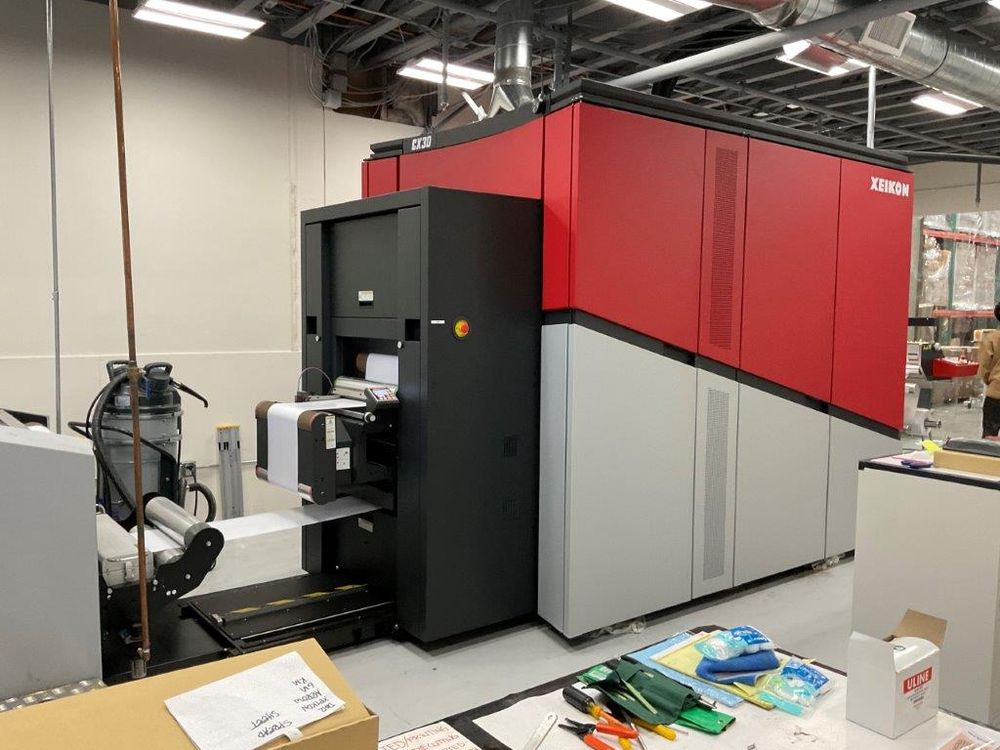

Xeikon CX30 200-330 mm

Status: Xeikon Gold Service
Date of Installation : November 2022
Print Technology : Dry toner electrophotography
Imaging Head : High-Precision LED Matrix
Color Configuration : One-Pass Simplex 5/0
Media Input : Unwinder, 1500 mme diameter
Media Output : Rewinder, 600 mm diameter
Imaging Quality : 1200 x 1200 dpi, variable dot density
Media Width : 200-330 mm
Toner : QB-IC UCE dry toner
Press Throughput : Up to 20 m/min
Media Weight : 40-350 g/m², 550 µm
Substrates : SA or PS Label Media (Paper, PP, PE**, PET, Vinyl, co-extruded film), Paper, Paperboard, Transfer substrate, unsupported BoPP and oPP film for IML
Digital Front End : Xeikon X-800

Description:
Modular series of presses based on the latest Cheetah 2.0 technology
Excellent investment / capacity ratio
Top OEE performance, Top printing speed of 20 m/min in 5 colour mode (upgradeability to 30 m/min)
Substrate width of max 330 mm (upgradeability to 520 mm)
Full rotary printing / variable repeat
Widest application and substrate range
Superior image quality, 5th colour station for spot colour reproduction and security applications
First Installation November 2022

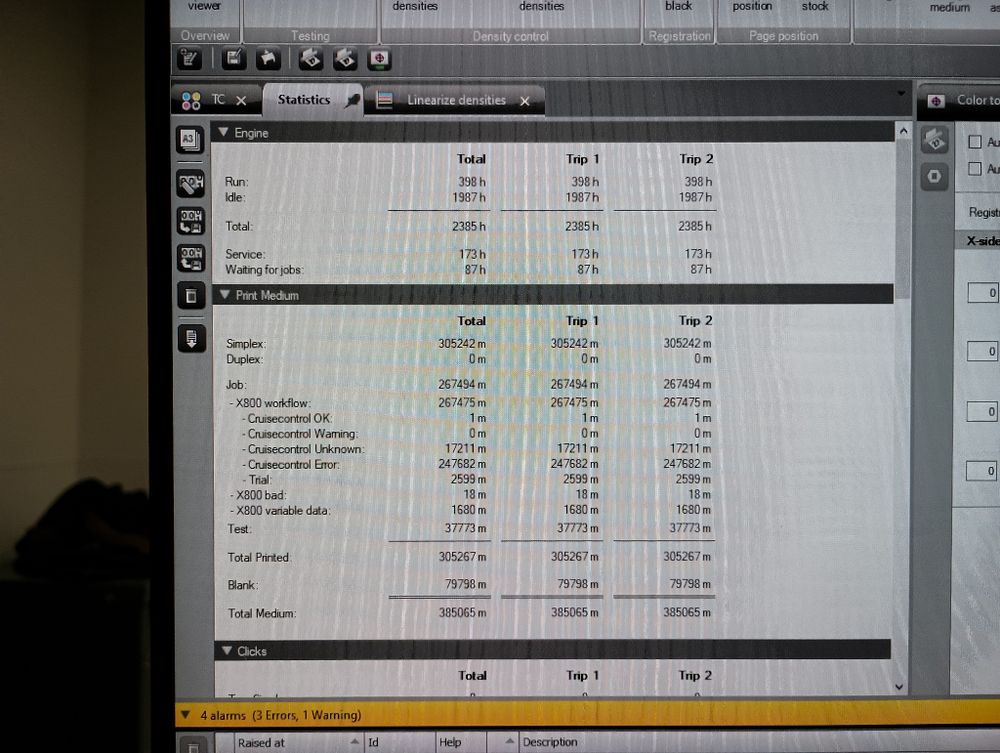

ONLY 400 hours (run) and 2.000 hours (idle)
Electrography using Xeikon QB-I or QB-IC dry toner (for food contact), 5 x High-Precision LED-Printing Heads (CMYK + White or spot colour)
Density Control
Inline Spectrophotometer
Screening | Pericles screening library up to 240 lpi
Unwinder with max 1.500 mm diameter
Rewinder with max 600 mm diameter
Printing Area: max 322 mm x 42 m
Resolution: 1.200 dpi with variable dot density
Substrates: SA or PS Label Media (Paper, PP, PE**, PET, Vinyl, co-extruded film), Paper, Paperboard, Transfer substrate, unsupported BoPP and oPP film for IML
Specific materials like metallic and vinyl substrates require a standard coating
Printable with QB-IC ICE Toner or Cheetah Toner

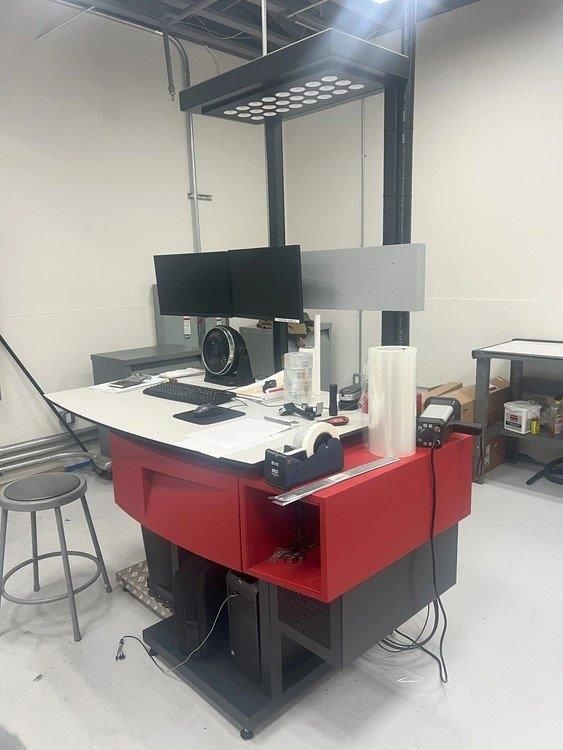

Digital Front-End X 800 with Control PC and 2 monitors
Xeikon Workflow X 800 with X-800 My Press Controller

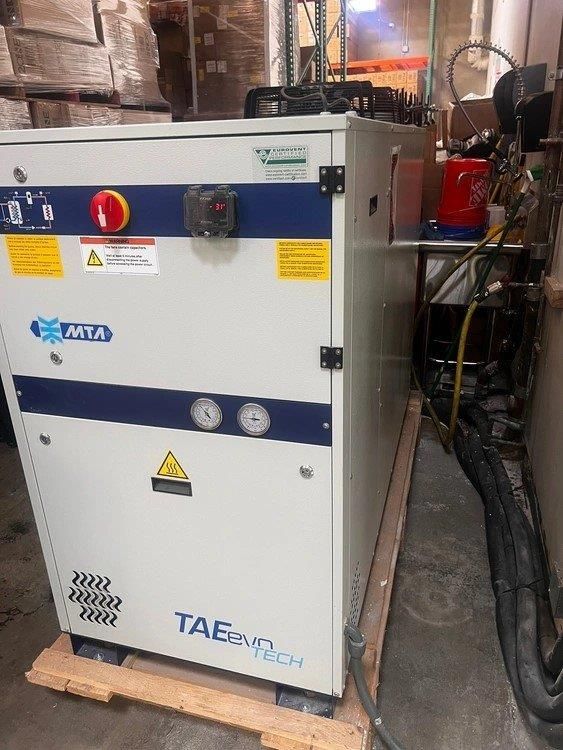

Cooling Unit, Machine is still in production for small runs
Machine is still under Xeikon Service Contract
