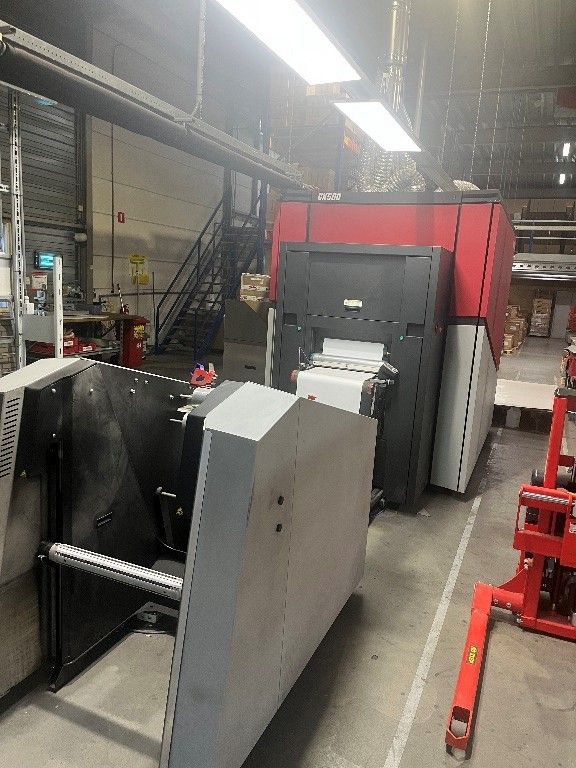

Xeikon CX500 5 508 mm

Digital Label Press - (Roll-to-roll digital dry-toner press)
Print Media Handling
• Roll-to-roll configuration with variable repeat length
• Print width: 508 mm
• Print speed: 20 m/min (65.6 ft/min), depending on substrate grammage
• Media weight: 40 – 350 gsm (27 lb text to 130 lb cover)Print Engine
• 5-color dry toner technology
• Resolution: 1200 dpi
• Color configuration:
o CMYKo Single-pass opaque white
o Gamut extension
o Custom spot colors

GM DC5V8-BX
Converting & Finishing System:
Year of Manufacture: 2011
Web Specifications
• Web width: 200 – 520 mm
• Substrate thickness: 20 – 200 microns
• Machine speed (semi-rotary): up to 55 m/min

Main Units & Features:
• Unwind unit (max. diameter: 700 mm)
• BST web guide with splice table
• Servo-controlled flexo printing unit
• UV drying unit
• Laminating unit
• Vetaphone corona treater
• Die-cutting unito Plate size: 50.8 mm – 520.7 mmo
Magnetic cylinder: Z200
• Waste rewinder (diameter: 500 mm)
• Slitting unit
• Two rewind stations
• Pre-installed buffer system for Xeikon digital press
• Touch-screen operator control panel

SYSTEM BENEFITS:
When combined, the Xeikon digital press and GM DC5V8-BX finishing line form a complete end-to-end label production workflow, enabling:
• High-quality digital printing
• Inline or nearline converting
• Flexo varnish, lamination, die-cutting, slitting, rewinding
• Fast job changeovers
• Efficient production of short, medium, and long runsIdeal for label converters seeking a compact, flexible and fully integrated solution

CONDITION OF THE MACHINES:
• Both machines are in good used condition
• Fully operational prior to decommissioning
• Offered as part of a combined setup for optimal productivity
