Xeikon CX500 + GM DC5V5 Finishing 5 520 mm

Print Technology: Dry toner electrophotography
Imaging Head : High-Precision LED Matrix
Resolution: 1200 dpi with variable dot density
Printing Engines : One-Pass, 5 (CMYK+White/Cleat/Spot)
Media Input : Web-fed
Media Output : Rewinder
Max. Media Width: 520 mm
Toner: Xeikon QA-CH Toner (meeting FDA regulation)
Printing Speed: Up to 30 m/min
Media Weight : 40-350 g/m2, 550 μm
Digital Front End : Xeikon X800
Software Version : My Press

Description :

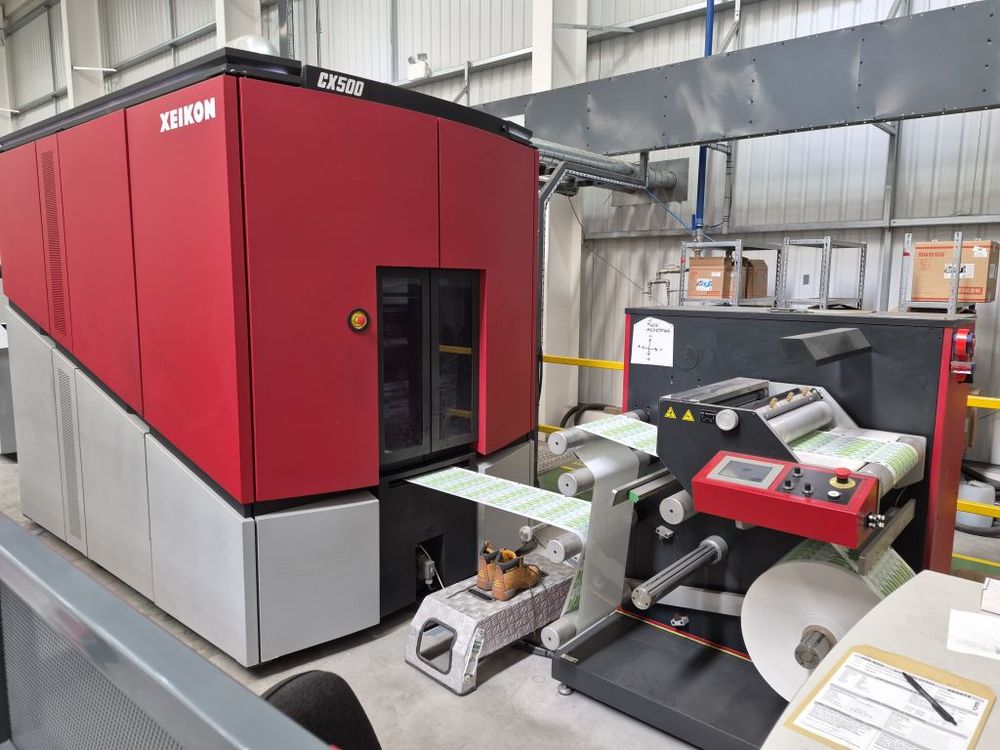

+++ Xeikon CX500 | Digital Label Press
Roll-to-roll configuration met variable repeat length
LED-array based
Dry Toner Electrophotography
Xeikon QA-CH Toner (meeting FDA regulation)
Color Configuration 5/0 simplex (CMYK and White)
Imaging Width max 508 mm
Media weight 40 – 350 gsm
Media caliper 40 – 550 microns
Web Speed max 30 m/min
Productivity max 936 sqm / hour
In-Line Density Control
Active Web Alignment
Digital Front End Xeikon X800 with Control PC and 2 monitors

Xeikon MY PRESS Controller
Machine is still in Xeikon Service Contract
Machine is still in production for small runs +++ GM DC5V5
Finishing and Converting System
Web Width 200 - 520 mm
Substrate Thickness 20 – 200 microns
Machine Speed - Semi Rotary up to 55 m/min
Unwind Unit - Diameter max 700 mm
BST Web Guide with splice table
Servo controlled Flexo Printing Unit
UV Drying Unit
Laminating Unit
Vetaphone Corona Unit
Die Cutting Unit - Die plate size 50,8 mm – 520,7 mm
Magnetic Cylinder Z 200
Waste Rewind with 500 mm diameter
Slitting Unit
2x Rewinds, pre-installed Buffer-System for Xeikon Digital Press +++
