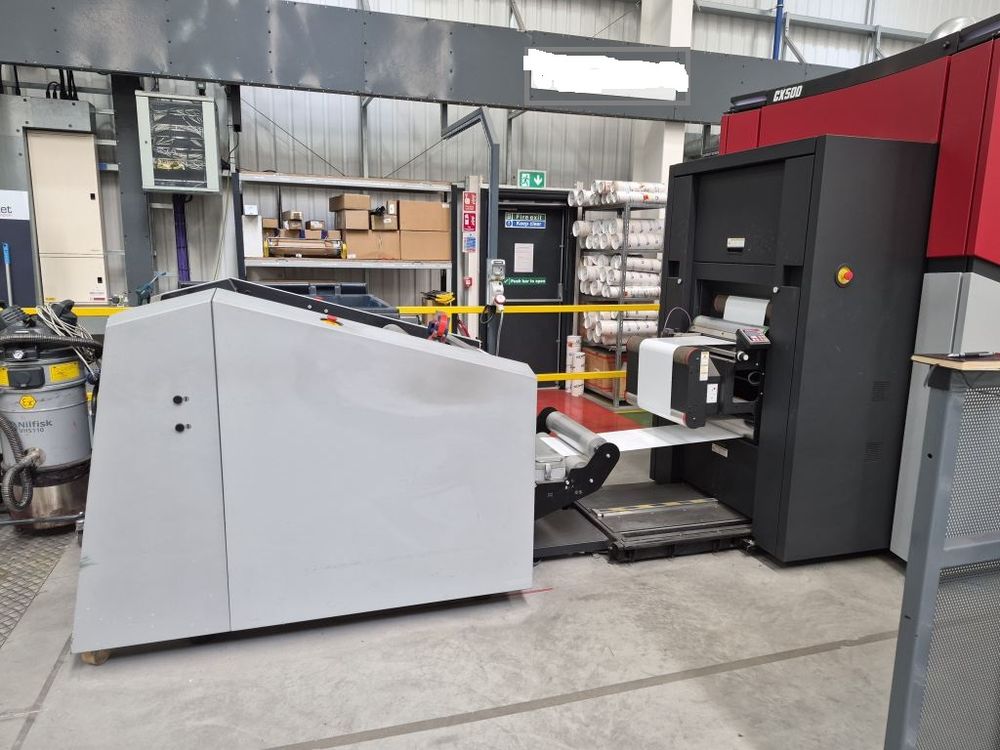

Xeikon CX500

Status: Xeikon Gold Service
Date of Installation: March 2020
Print Technology : Toner electrophotography
Imaging Head : High-Precision LED Matrix
Printing Engines : One-Pass, 5 (CMYK+White/Spot/Clear)
Media Input: Web-fed
Media Output : Rewinder
Imaging Quality : 1200 dpi, variable dot density
Media Width : 250-520 mm
Max. Media Width : 520 mm
Toner : Xeikon QA-CH Toner (meeting FDA regulation)
Printing Speed : max 30 m/min
Media Weight : 40-350 g/m2, 550 μm
Substrates : Pressure-sensitive SA/PS Label, Paper, PP, PE, PET, paperboard and unsupported BoPP/oPP, co-extruded film
Digital Front End: Xeikon X-800
Software : Xeikon MyPress Controller
Spectrometer : Inline, for continuous tone curve control and colour calibration during live production
Active Web Alignment : Yes

Description :
First Installation March 2020
ONLY 2,86 Mio. printed meters (status from June 2026)
Roll-to-roll configuration met variable repeat length up to 42 m
LED-array based
Dry Toner Electrophotography, Xeikon QA-CH Toner (meeting FDA regulation)
Color Configuration 5/0 simplex (CMYK and White)
Imaging Width max 508 mm
Web Speed max 30 m/min
Productivity max 936 sqm / hour
In-Line Spectrophotometer for continuous tone curve control and colour calibration during live production
Active Web Alignment
Digital Front End Xeikon X800 with Control PC and 2 monitors, enabling variable data printing (VDP) and Inline Color Profiling
Xeikon MY PRESS Controller
Machine is still in Xeikon GOLD Service Contract
Machine is still in production for small runs
