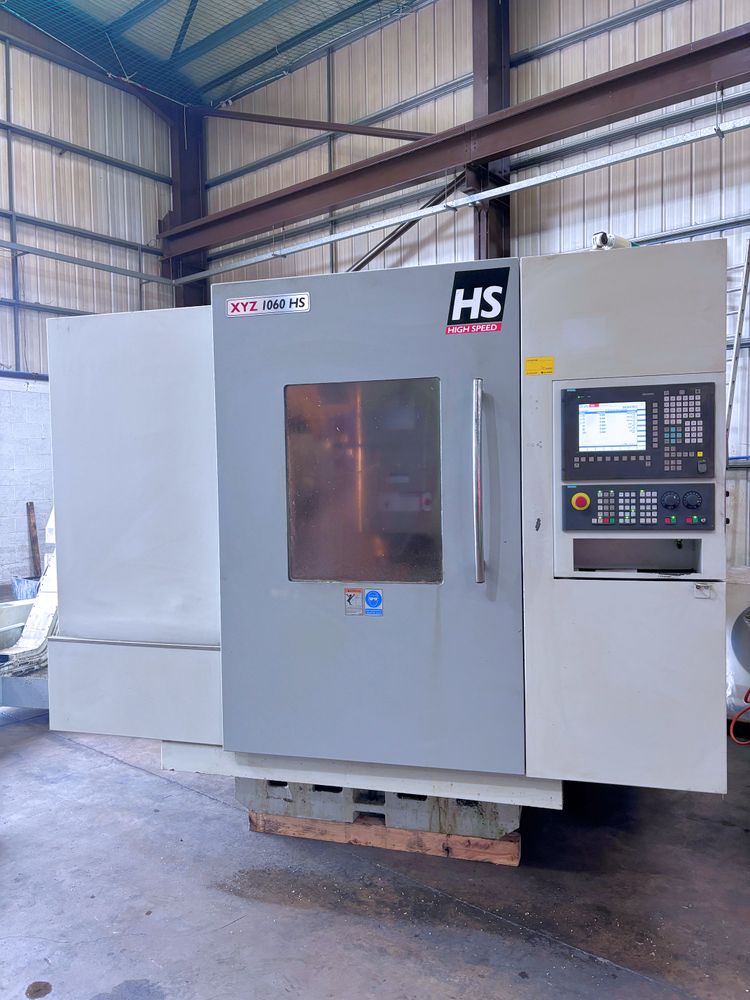

XYZ 1060 HS VMC 3 Axis

X Axis Travel – 1020 mm
Y Axis Travel – 610 mm
Z Axis Travel – 620 mm
Control – Siemens 840DSL with Shopmill
Coolant
Interlocked Guards
Low Volt Light
Remote Hand Wheel
Swarf Conveyor
Swing Arm Toolchanger
Through Spindle Coolant
Tool Setter
USB Port
Spindle Power – 14.7 kW
Spindle Speed – 12000 rpm
Spindle Taper – BT40
Tool Capacity – 30
Tool Change Time – 3.5 s (chip to chip)
Max Tool Weight – 8 kg
Table Size – 1200 x 600 mm
Workpiece Capacity – 800 kg
Height Under Spindle – 140 – 760 mm
Rapid Feedrate – 43 m/min
Distance Spindle to Column – 670 mm
Machine Dimensions – 2650 x 2750 x 2900 mm
Machine Weight – 7200 kg
