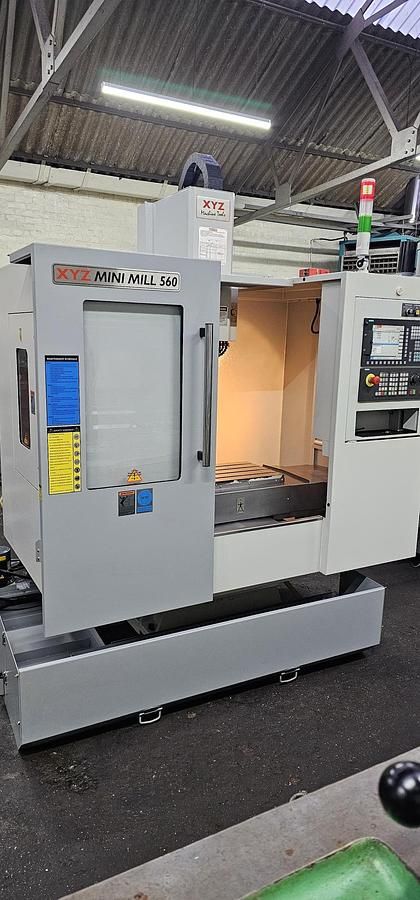

XYZ MINI MILL 560 3 Axis

X-Axis Travel: 560 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 500 mm
Rapid Traverse (X, Y, Z): 20 m/min
Control: Siemens 828D
High Pressure Flood Coolant
Rigid Tapping
Remote Electronic Handwheel
USB Port
Spindle Speed: 5 - 8000 rpm
Spindle Motor: 11.2 kW / 15 HP
Spindle Taper: BT 40
Feed Rate: 1 - 20,000 mm/min
Tool Changer Capacity: 12 Tools
Max Tool Diameter: 100 mm
Max Tool Weight: 7 kg
Table Size: 610 x 370 mm
Table Load Capacity: 300 kg
Distance Table to Spindle: 100 - 600 mm
Spindle Center to Column Face: 455 mm
Overall Dimensions: 2000 mm x 2060 mm x 2530 mm
Weight Approx.: 3100 kg
