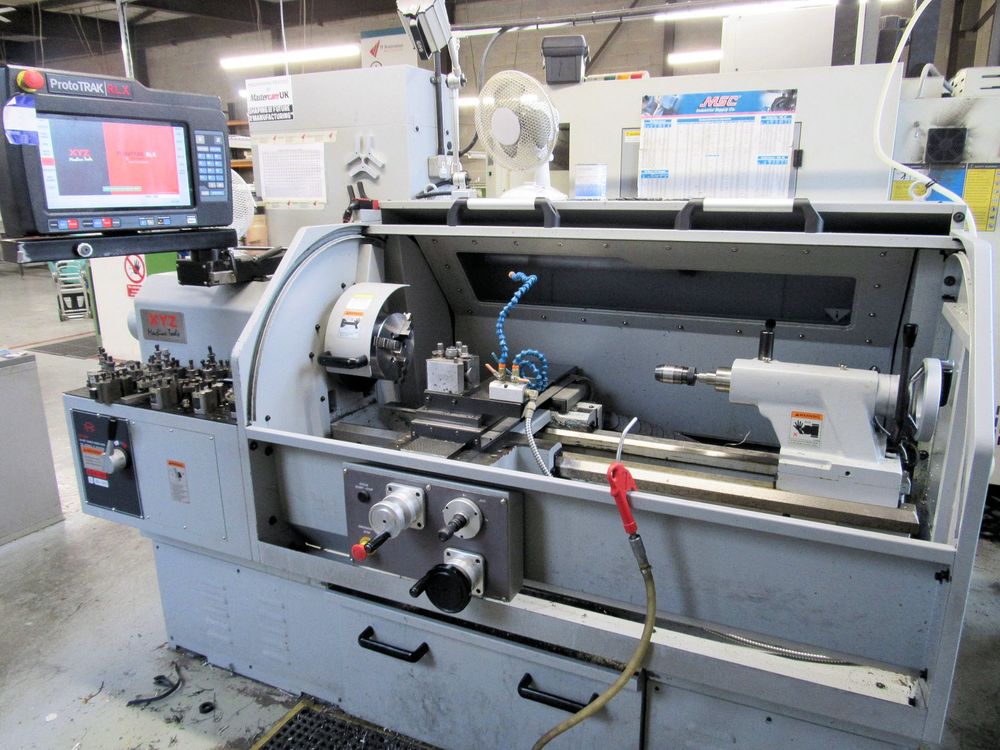

XYZ Prototrak RLX control 4000 rpm RLX 355 2 Axis
Ref :
2764147-3-GO
Condition :
Used
Manufacturer :
XYZ
Controller :
Prototrak RLX control
Spindle Speed :
4000 rpm
Model :
RLX 355
Nb Of Axis :
2 Axis
Year(s) :
2023
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centers: 1000 mm
Maximum cutting length: 900 mm
Swing: 360 mm
Swing over cross-slide: 225 mm
Spindle bore: 52 mm
Spindle speed: 50–4000 rpm
Spindle motor power: 5.75 kW
Spindle nose: D1-6
Spindle taper: MT4 in bush
Chuck size: 8" (200 mm)
Tailstock quill diameter: 60 mm
Tailstock quill stroke: 150 mm
Tailstock taper: MT4
Machine dimensions: 2320 x 1410 x 1940 mm
3-jaw chuck
Coolant
Interlocked guards
Quick change toolpost
Tailstock
