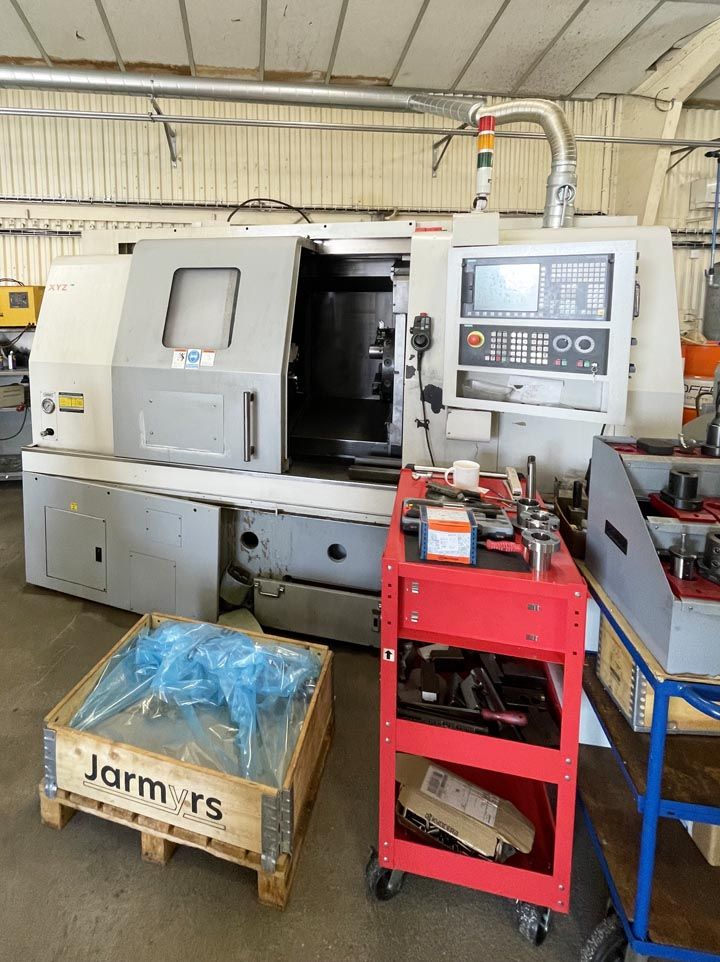

XYZ Siemens 828D 3300 rpm 320LTY 3 Axis

Control system: Siemens 828D
Spindle runtime: 6631 hours
Cycle runtime: 7712 hours
X travel: 270 mm
Y travel: 100 mm (+/-50 mm)
Z travel: 600 mm
Rapid feed: 20 m/min
Cutting feed rate: 1–20000 mm/min
Maximum swing: 450 mm
Maximum turned diameter: 320 mm
Maximum turned length: 550 mm
Spindle nose: A2-8
Spindle bore: 91 mm (78 mm)
Spindle speed: 3300 rpm
Spindle motor: 33 kW
Tailstock Morse taper: MT5
Y-axis: Yes
Driven tools: Yes
Programmable hydraulic quill stroke: Yes
Tailstock dockable with carriage: Yes
Hydraulic 3-jaw chuck: Yes
Chip conveyor: Yes
Toolchanger capacity: 12 tools (VDI40)
Radial milling/drilling head: 1 pc
Axial milling/drilling head: 1 pc
External VDI holders: 2 pcs
Internal VDI holders: 2 pcs
Hydraulic quill stroke (tailstock): Yes
Tool presetter: Yes
Machine weight: 6700 kg
