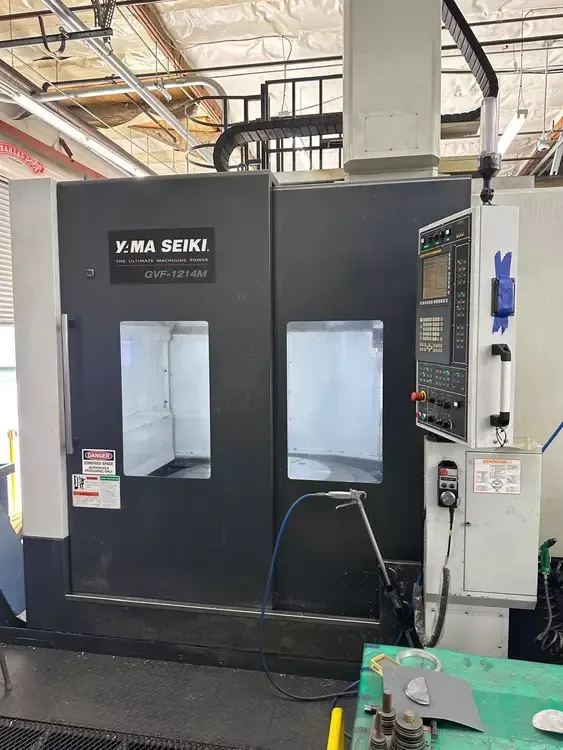

Yama Seiki GVF-1214M Max Swing 57"

YAMA SEIKI GVF-1214M
Year: 2019

Table Diameter 49.21"
Maximum Turning Height 35.4"
Table Load Capacity 8,157 lb
Vertical Travel Z-Axis 35.4"
Horizontal Travel X-Axis 61"
Main Table Motor 60 HP
Live Spindle Motor 25 HP
Live Spindle Speed 2400 RPM (2-speed gear box)
C-Axis Resolution 0.001°
Table Speed 350 RPM
Automatic Tool Changer 12 positions
Rapid Traverse X/Z 472,363 mm/min
Feed Rate C-Axis 0.001°
Control FANUC 0i-TF
Machine Dimensions 197.64" x 158.66" x 192.9"
Weight 47,400 lb
FANUC 31i-B color control with Manual Guide i
Handheld remote MPG
49" 4-jaw independent manual chuck
2-speed geared headstock on main spindle
7500 ft-lb torque on main spindle
Chip conveyor
High-intensity work light
Spindle chiller
Renishaw RP3 auto tool setter
C-axis 0.001° accuracy
2-speed geared rotary tool spindle
Rigid tapping
132 PSI high pressure coolant system
Chip wash gun
Polar coordinate interpolation
Cylindrical interpolation
Variable lead threading
Thread cutting retract
Tool nose radius compensation
Unexpected disturbance torque detection
Spindle speed fluctuation detection
Polygon turning
Canned drilling cycles
Custom macro support
Auto power off
Memory card I/O CF + USB
Ethernet connectivity
Tri-color signal tower
6 static turning holders
Coolant-through mill head spindle
