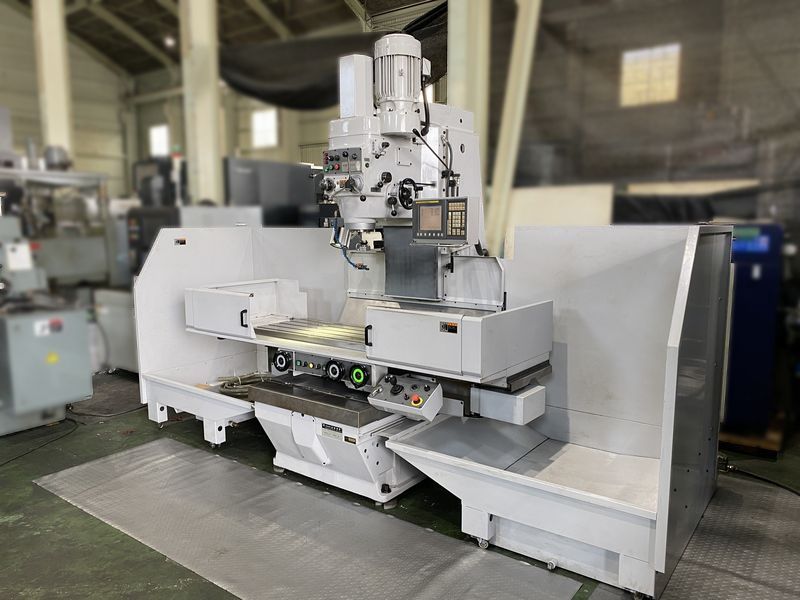

Yamazaki Giken YZ‑500WR Vertical 2,000 rpm

Yamazaki Giken YZ‑500WR
2016

Controller: FANUC 32i‑MODEL B
Table Size: 1,600 × 500 mm
Maximum Work Weight: Approx. 600 kg
Travel X: 1,250 mm
Travel Y: 550 mm
Travel Z: 520 mm
Distance from Spindle to Table Top: 140–660 mm
Spindle Speed: 2,000 rpm
Spindle Taper: BT50
Required Area: 3,350 × 2,070 mm
Height: 2,475 mm
Machine Weight: Approx. 4,700 kg
Control Device Operation Panel: General-purpose / Guidance
Number of Controlled Axes: 2 axes (X, Y)
X-axis Stroke Extension (1,250 mm)
Chip Coil Conveyor (inside the machine)
Table Splash Guard
Partition Type
Pull Stud Type Tool Attachment/Detachment Device (BT50)
High-Speed Spindle Specification 3,000 rpm Inverter Control Override
No Cutting Fluid Device
