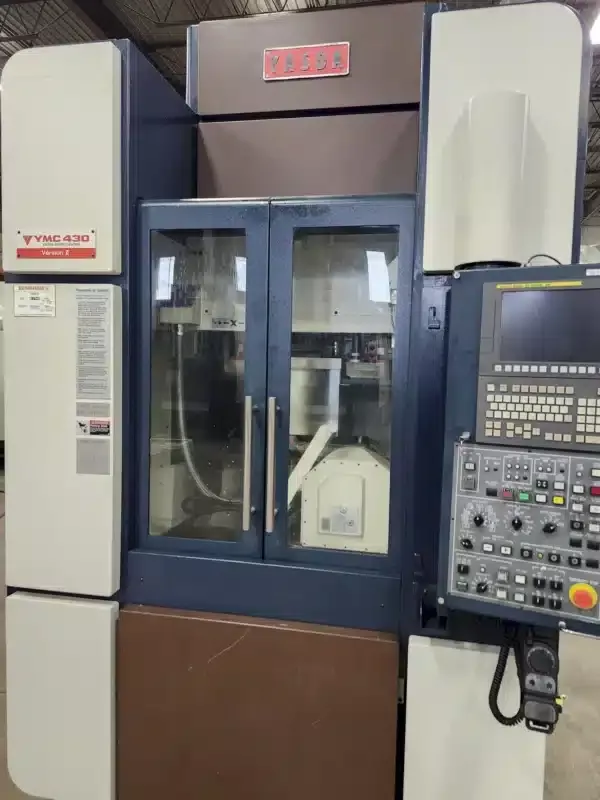

Yasda YMC430 3 Axis

X-Axis Travel: 16.5″ / 420 mm
Y-Axis Travel: 11.8″ / 300 mm
Z-Axis Travel: 9.8″ / 250 mm
Table to Spindle Nose Distance: 5.9″ – 15.7″ / 150 – 400 mm
Spindle Taper Hole: HSK-E32
Spindle Speed Range: 200 – 40,000 RPM
Spindle Drive Motor: 10 HP / 7.5 kW AC (Continuous)
Table Working Size: 600 x 350 mm / 26.6″ x 13.7″
Table Loading Capacity: 33 lbs / 15 kg
Rapid Feed Rate X, Y, Z: 787.4 ipm / 20,000 mm/min
Maximum Cutting Feed: 393.7 ipm / 5,000 mm/min
Min. Input Increment: 0.0001 mm
Optical Scale Feedback X, Y, Z: 0.000001 mm
Tool Storage Capacity: 32 Tools
Max. Tool Dia./Length/Mass: φ50 mm / 120 mm / 500 g
Tool Change Method: Armless
Tool Selection Method: Random
Control: Fanuc 31i-B5 + HMI
Handwheel
32 Station Automatic Toolchanger
RT10 5 Axis Table (C-Axis) 360° Continuous
Table Tilting Axis Travel (B-Axis): -10 to 100°
Max. Swing Diameter: 9.84″ / 250 mm
Chucking System: 3R Macro
Computer Display: 15″ Touch Panel
Tape Memory: 512K (1280M)
Program Number/Program File Name: O4-digit / 32 Characters
Custom Macros: 1000
Automatic Corner Override
Run Time/Part Display
Extended Part Program Editing
Data Server: 1 GB
Helical Interpolation
Program Mirror Image
HAS-4 Machining System
High Speed Smooth TCP
Spindle Head and XYZ Axis Cooling Device: 40 L / 500 kcal/hr
X, Y, Z Optical Scales
Spindle Bearing Lube System
LED Work Light
Automatic Power Off
Blube MQL External Mist Coolant
Tool Offsets Pairs: 64
Tilted Working Plane Indexing
Rotation Center Calibration Function (iCAL)
Compensation for Spindle Thermal Displacement
Flood Coolant: 2 AA Type Nozzles
Mist Collector Interface
Thermal Distortion Stabilizing System with Weekly Timer
Splash Guard with Roof
Leveling Screws
DyanLine Non-Contact Automatic Tool Measuring System Line Sensor
Auto-Measuring System without Printer; Renishaw Probe OMP 400
Linear Motors
Coolant System
Floor Space with Door Open: 121″ x 141″ / 3050 x 3575 mm
