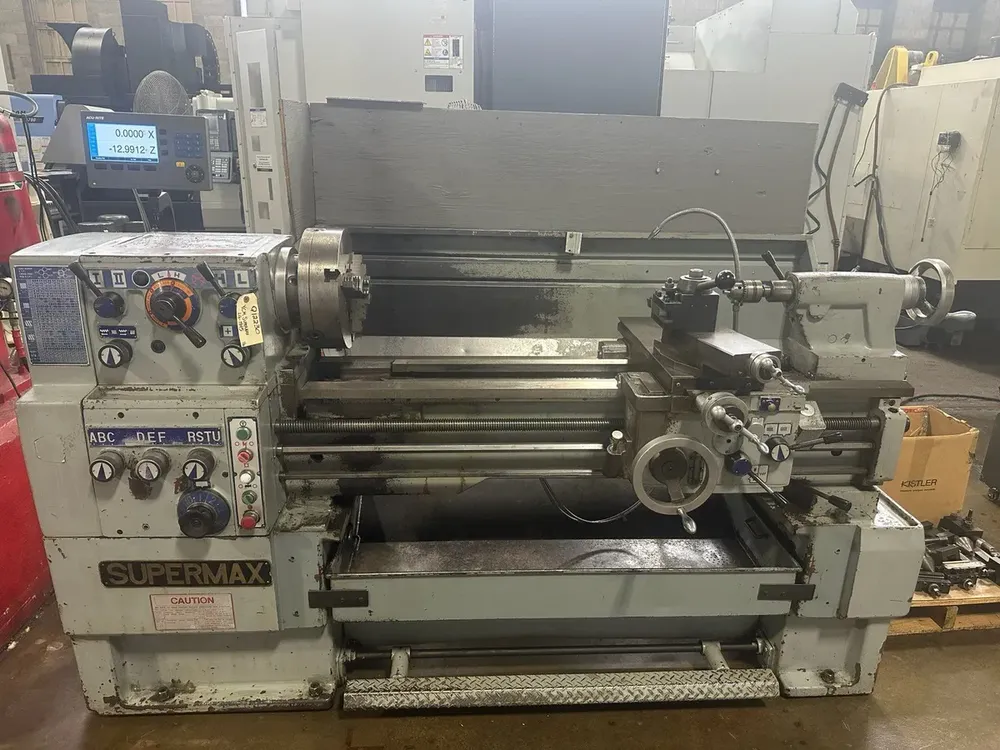

YCM Engine Lathe 2,000 RPM SUPERMAX LG-1845

Max swing over bed: 18"
Max swing over cross slide: 11.3"
Max swing in gap: 25.19"
Distance between centers: 45"
Bed width: 11.81"
Cross slide travel: 10.44"
Spindle nose: A1-6
Spindle bore: 2.25"
Number of spindle speeds: 12
Spindle speed range: 30 - 2,000 RPM
Inch threads: 2 - 112 TPI
Metric threads: 0.2 - 14 mm pitch
Cross feed range: 0.0007 - 0.01935 in/rev
Longitudinal feed range: 0.0014 - 0.0387 in/rev
Tailstock spindle travel: 5.88"
Tailstock taper: No. 4 Morse
Tailstock spindle diameter: 2.38"
Main motor power: 7.5 HP
Coolant pump motor: 1/8 HP
Control: 2-axis Accurite DRO
Chucks: 12" 3-jaw and 12" 4-jaw
Built-in coolant pump
Compound cross slide with 2-sided tool post
Chip pan included
Toolholders and chuck jaws included
Electrics: 240/3/60
Machine dimensions: 96" x 43" x 49"
Machine weight: 4,762 lb
