Yoder QVW-150

Reference #32440

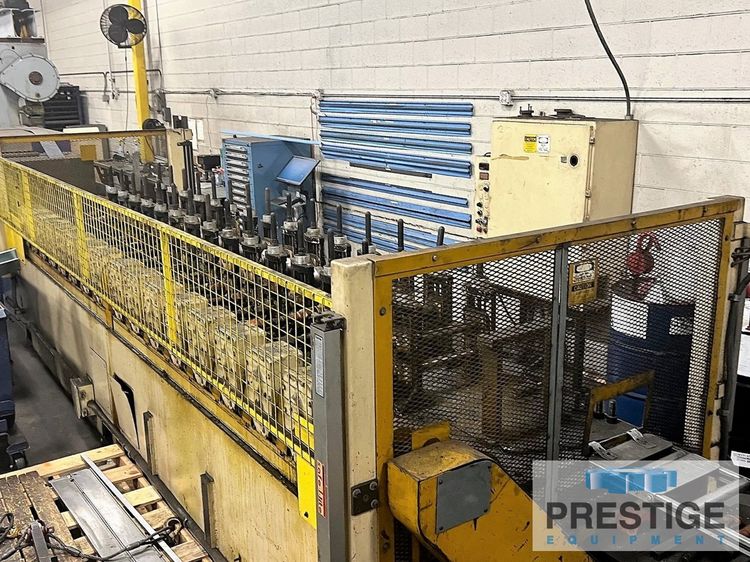

Yoder QVW 150 Roll Forming Line

CAPACITY:

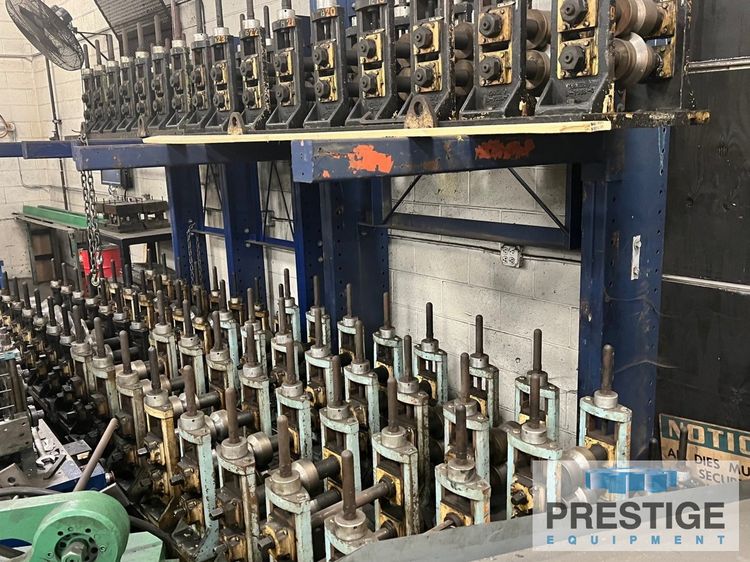

Number of Stands .......................... 16
Roll Shaft Diameters ...................... 1.5
Roll Space ................................ 8"
Keyway .................................... 3/8" x 3/16"
Horizontal Centers ........................ 11"
Vertical Centers .......................... 4"-7"
Distance Base to Bottom of Shaft .......... 5.25"
Vertical Centers (Unequal Max.) ........... 7"
Vertical Centers (Unequal Min.) ........... 4.125"
Gear Ratio ................................ 1.43:1
Maximum Strip Gauge ....................... 0.062"
Maximum Strip Width ....................... 7"
Standard Mill Speed ....................... 100 FPM
Worm Gearing Ratio ........................ 7.61:1

EQUIPPED WITH:
Universal Shaft Drive M-Style Equivalent
Rafted for Quick Changeover
Spring-Loaded Universals for Quick Disconnect
Precision Timken Tapered Roller Bearings (Inboard Side)
Roller Bearings, Rotating in Hardened Sleeves (Outboard Side)
Alloy Steel Roll Spindles, Carburized, Hardened and Ground
Hardened Hex-Type Clamping Nuts
Micrometer Screws to Faciliate Accurate Adjustment of Spindles after Roll Changes
