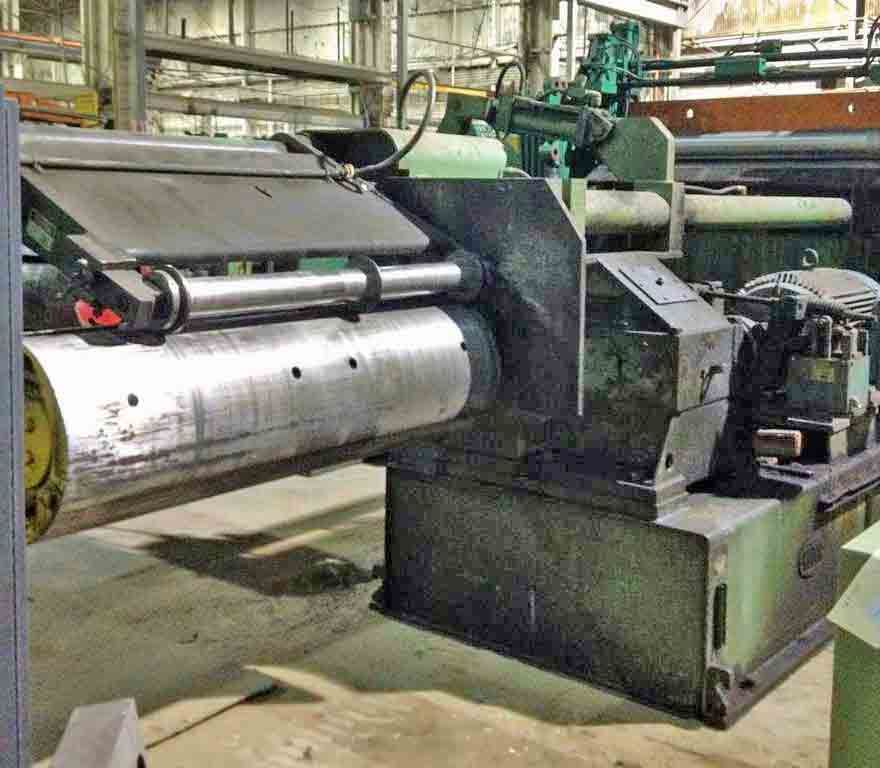

Yoder Recoiler Capacity: 30,000 lbs
Ref :
2788424-3-MT
Condition :
Used
Manufacturer :
Yoder
Model :
Recoiler
Capacity :
Capacity: 30,000 lbs
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Drum Diameter: 20"
Drum Face Width: 64"
Clamp: Manual clamp and expansion
Push-off: Hydraulic
Floor to Center Line of Drum: 41.5"
Maximum Coil OD: 72"
Separator Shaft Length: 50"
Motor: 125 HP ABB AC, 1783 RPM with ABB DC Drive Controller
Reducer: H&S, size 150-D210, 17.42:1 ratio, 100 HP rating, 530 RPM input, 1.0 service factor
Main Shaft Diameter: 11"
Line Direction: Right to Left
Overall Size: 192" L x 78" W x 87" H
Weight: 17,500 lbs
