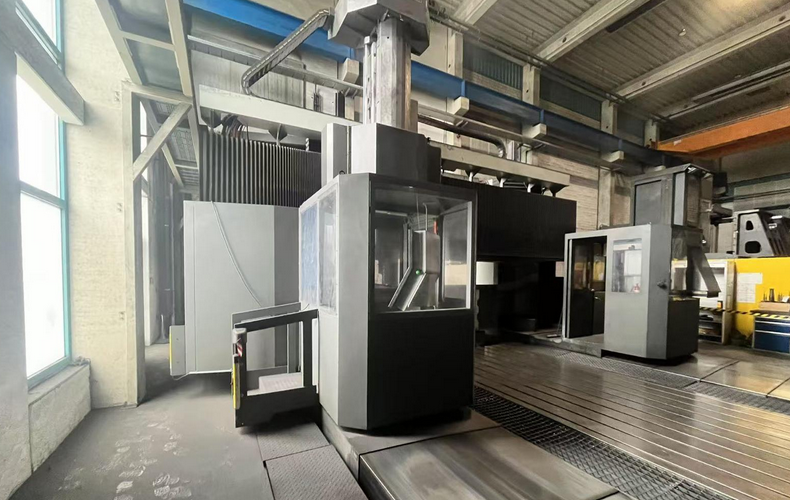

Zayer GMCU 6000 AR 4500 rpm
Ref :
2747243-3-MT
Condition :
Used
Manufacturer :
Zayer
Model :
GMCU 6000 AR
Spindle Size :
-
Spindle Speed :
4500 rpm
Year(s) :
2014
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 6000 mm
Y-axis travel: 4500 mm
Z-axis travel: 1250 mm
Distance between columns: 3800 mm
C/B axis pickup: 0.001º-0.001º, 45º head, 3+2
Direct departure head
Control: HEIDENHAIN iTNC 530
Electronic handwheel: Yes
Tool magazine: 60 units
Internal coolant supply: Yes
Spindle speed range: 60-4500 rpm
Spindle taper: SK50 DIN 69871
Spindle power: 60 kW
Feedrate: 6-10,000 mm/min
Rapid traverse (X, Y, Z): 25,000 mm/min
Table size: 7000x2500x300 mm
T-slots: 10
Max. load: 15 tons/m²
Paper filter: Yes
Chip conveyor: Yes
Lenze light barriers: Yes
