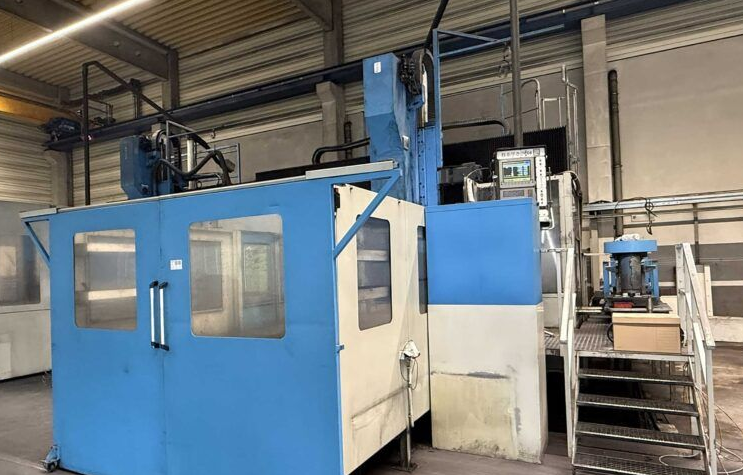

Zayer KPU-4000 AR 6.000 r.p.m.

ZAYER KPU-4000 AR
Year 2000
CNC HEIDENHAIN TNC-430 PA

Table
Table Surface 4.000 x 1800 mm
Max weight allowed on table 20.000 kg

Travels and feeds
Longitudinal travel (X Axis) 3.700 mm
Cross travel (Y Axis) 3.050 + 873 mm
Vertical travel (Z Axis) 1.100 mm

Distance between columns 2.300 mm
Max distance from table to nose with direct exit head 1.175 mm
Max distance from table to nose with 45º head in vertical position 1.240 mm.

Rapid feed (X, Y, Z) 25.000 mm/min
Max. Working Feed 15.000 mm/min
X, Y, Z Axis acceleration 0,8 m/seg2
Automatic head 45
A Axis Rotation 0.001º/360.000 posiciones
B Axis Rotation 0.001º/360.000 posiciones

Automatic head 45º Taper ISO-50 – DIN 69871
Automatic head 45º Speed 6.000 r.p.m.
Main spindle power 37 kW.
Speed ranges 2

Direct exit head INCLUDED
Direct output head taper ISO-50 – DIN 69871
Automatic tool changer (ATC) INCLUDED
Magazine positions 30

Equipment
Manual change of heads INCLUDED
Retractable Automatic Support in the Right Side For 45º Head INCLUDED
Manual support in the upper side or right column for direct output head INCLUDED
Integral protection guards INCLUDED
Double chip conveyor,one at each side of the machine INCLUDED
Cross chip conveyor INCLUDED
1000 l Oil Tank with Filter Paper + Magnetic Separator INCLUDED
Internal coolant 20 Bar INCLUDED
External coolant 5 bar INCLUDED
CNC 3D ROT Function INCLUDED
Portable handwheel HEIDENHAIN HR-410
Axis and head engines manufacturer SIEMENS DIGITALES

Others
Ethernet connection INCLUDED
Positioning accuracy 0.010 mm.
Repetitive accuracy 0.005 mm.
Machine colour RAL 7038 / RAL 5012
Machine weight 42.000 kg
