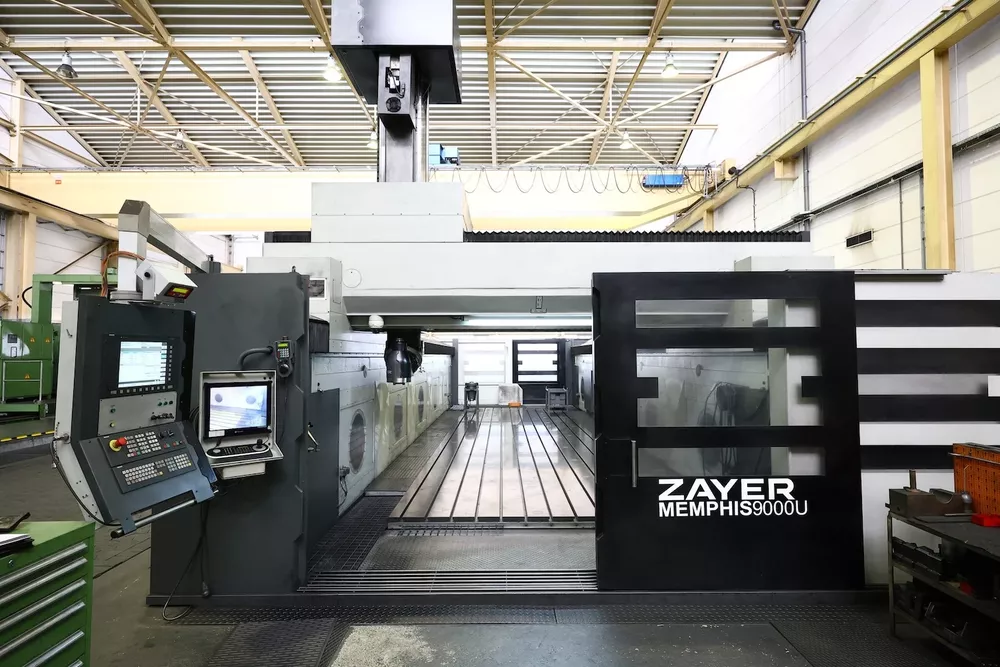

Zayer MEMPHIS-Y 9000 3 Axis

ZAYER MEMPHIS-Y 9000
Year: 2008

X-axis travel 9000 mm
Y-axis travel 3000 mm
Z-axis travel 1250 mm
Table dimensions 10000 x 3000 mm
Spindle speed range 35–4000 rpm
Table load capacity 15000 kg/m²
Max tool weight 25 kg
Tool changer capacity 80 tools
Control system Sinumerik 840D
Tool magazine with 80 positions
Tool change arm with double gripper
Integrated turntable in boom
Turntable with automatic positioning every 0.001° (360,000 positions)
Vertical milling head with reinforced bearing Ø 100 mm
Vertical milling head prepared for automatic change
CNC-controlled universal milling head 45°
Universal milling head with automatic positioning every 0.001° (360,000 positions)
Coolant tank capacity 1000 liters
Coolant pump pressure adjustable 6–40 bar
Coolant flow rate 60 liters/min
External cooling with belt filter and magnetic separator
Automatic switching between water and air via M-function
Internal coolant supply DIN 69871 A-D through spindle center
Internal coolant for vertical and universal heads
Chip conveyor on both sides of table
Additional transverse chip conveyor
Main spindle motor power 37 kW
Collision protection system Brankamp CMS, 1-channel
