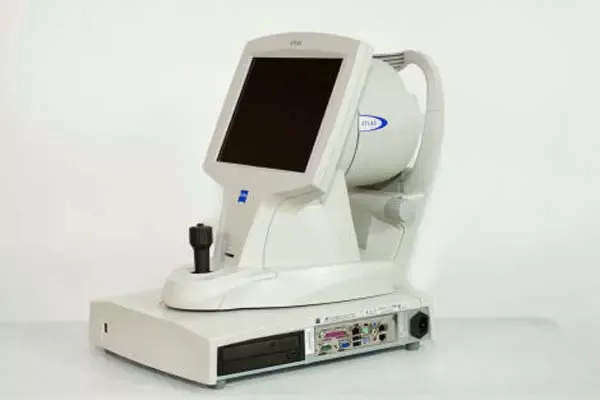

ZEISS ATLAS 9000

Simply Accurate for Maximum Productivity
Proven Placido Disk Technology with patented Cone-of-Focus™
Alignment System
SmartCapture™ Image Analysis Technology analyzes multiple images
during alignment and automatically selects the
highest quality image
MasterFit™ II Contact Lens Software helps streamline the fitting of
gas permeable (GP) lenses and guides you through difficult and
specialty fits
Data compatibility with previous generation ATLAS Corneal Topography Systems to facilitate data management and
patient follow up
Placido Disk Technology with Cone-of-Focus Alignment System
Proven, patented technology
Patented Cone-of-Focus™ Alignment System and
Arc-Step Algorithm deliver sub-micron elevation accuracy
Using triangulation, the advanced ATLAS Arc-Step
algorithm provides reliable surface reconstruction
22-ring Placido disk optimized to avoid ring crossover,
which means reliable results for a wide range of patients
Long, comfortable 70 mm working distance minimizes focusing
error found in “small cone” systems

SmartCapture Image Analysis
Technology that helps your staff get the right image the first time
SmartCapture™ analyzes 15 digital images per second during
alignment and automatically selects the highest quality image
Next-generation image processing provides more repeatable,
reliable results, even in difficult cases
Less dependence on operator technique means greater efficiency
and fewer repeat exams
