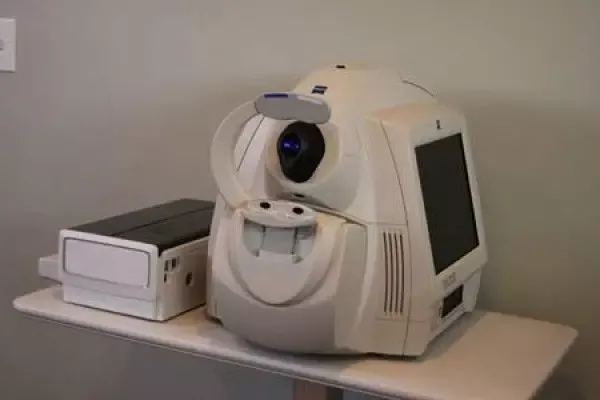

ZEISS Cirrus 4000

The ZEISS Cirrus HD-OCT 4000 (Cirrus HD-OCT or Cirrus)
enable examination of the posterior and anterior of the eye at
an extremely fine spatial scale, without surgical biopsy or
even any contact with the eye. The Cirrus HD-OCT builds on and
refines the retinal imaging technology first introduced with
the ZEISS Stratus OCT™. HD-OCT stands for
“high-definition optical coherence tomography.”

Employing the advanced imaging technology of
spectral domain optical coherence tomography,
Cirrus HD-OCT acquires OCT data about 70 times faster
(27,000 vs. 400 A-scans per second) and with better resolution
(5 μm vs. ~10 μm axial resolution in tissue), compared to
first-generation OCT technology. Cirrus acquires whole cubes of
OCT image data, composed of hundreds of line scans,
in about the same time as Stratus acquires a six-line scan.
You can view these data cubes in three planes, or
through three dimensions, giving you access to an
extensive amount of retinal image data in one scan.

Intended Use
The Cirrus HD-OCT with Retinal Nerve Fiber Layer (RNFL), Macular,
Optic Nerve Head, and Ganglion Cell Normative Databases is
indicated for in-vivo viewing, axial cross-sectional,
and three-dimensional imaging and measurement of anterior and
posterior ocular structures.

Indications for Use
The Cirrus HD-OCT is a non-contact, high resolution tomographic
and biomicroscopic imaging device. It is indicated for
in-vivo viewing, axial cross-sectional, and three-dimensional imaging
and measurement of anterior and posterior ocular structures,
including cornea, retina, retinal nerve fiber layer,
ganglion cell plus inner plexiform layer, macula,
and optic nerve head. The Cirrus normative databases are
quantitative tools for the comparison of retinal nerve fiber
layer thickness, macular thickness, ganglion cell plus
inner plexiform layer thickness, and optic nerve head measurements
to a database of normal subjects. The Cirrus HD-OCT is intended for
use as a diagnostic device to aid in the detection and management of
ocular diseases including, but not limited to, macular holes,
cystoid macular edema, diabetic retinopathy,
age-related macular degeneration, and glaucoma.

Note: The Cirrus HD-OCT is not intended to be used as
the sole diagnostic for disease.

Essential Performance
The Essential Performance of the instrument is to provide accurate
measurements of anterior and posterior ocular structure.

Patient Population
The Cirrus HD-OCT may be used on all adults in need of
diagnostic evaluation of the eye. This includes (but is not limited to)
patients with the following disabilities or challenges:
• Wheelchair user
• Very low or not measurable visual acuity
• Fixation problems
• Postural problems
• Deafness
• Large body, but not those above 99th percentile based on
anthropomorphic data

There is a general requirement that the patient be able to sit upright
and be able to place their face in the chin and forehead rest of
the instrument (with or without supplemental human or
mechanical support).

Cirrus HD-OCT is designed for in-vivo viewing, axial cross-sectional, and three-dimensional imaging and measurement of anterior and posterior ocular structures.
