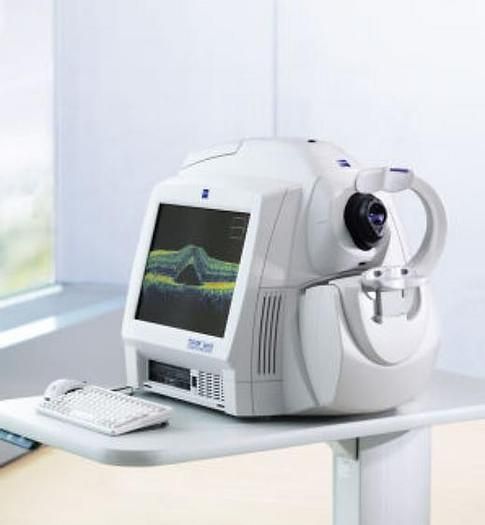

ZEISS Cirrus HD-OCT 4000

The ZEISS Cirrus HD-OCT 4000 (Cirrus HD-OCT or Cirrus)
enable examination of the posterior and anterior of the eye at
an extremely fine spatial scale, without surgical biopsy or
even any contact with the eye.

The Cirrus HD-OCT builds on and refines the retinal imaging
technology first introduced with the ZEISS Stratus OCT™.

Employing the advanced imaging technology of
spectral domain optical coherence tomography,
Cirrus HD-OCT acquires OCT data about 70 times faster
(27,000 vs. 400 A-scans per second) and with better resolution
(5 μm vs. ~10 μm axial resolution in tissue),
compared to first-generation OCT technology.

Cirrus acquires whole cubes of OCT image data, composed of
hundreds of line scans, in about the same time as Stratus acquires a
six-line scan. You can view these data cubes in three planes,
or through three dimensions, giving you access to
an extensive amount of retinal image data in one scan.

Specifications for Cirrus 4000
The Cirrus HD-OCT with Retinal Nerve Fiber Layer (RNFL),
Macular, Optic Nerve Head, and Ganglion Cell Normative Databases
is indicated for in-vivo viewing, axial cross-sectional,
and three-dimensional imaging and measurement of
anterior and posterior ocular structures.

Indications for Use
The Cirrus HD-OCT is a non-contact, high resolution tomographic
and biomicroscopic imaging device. It is indicated for
in-vivo viewing, axial cross-sectional, and three-dimensional imaging
and measurement of anterior and posterior ocular structures,
including cornea, retina, retinal nerve fiber layer,
ganglion cell plus inner plexiform layer, macula,
and optic nerve head.

The Cirrus normative databases are quantitative tools for
the comparison of retinal nerve fiber layer thickness,
macular thickness, ganglion cell plus inner plexiform layer thickness,
and optic nerve head measurements to a database
of normal subjects.

The Cirrus HD-OCT is intended for use as a diagnostic device to aid in
the detection and management of ocular diseases including,
but not limited to, macular holes, cystoid macular edema,
diabetic retinopathy, age-related macular degeneration,
and glaucoma.

Note: The Cirrus HD-OCT is not intended to be used as the sole diagnostic for disease.

Essential Performance
The Essential Performance of the instrument is to
provide accurate measurements of anterior and
posterior ocular structure.

Patient Population
The Cirrus HD-OCT may be used on all adults in need of
diagnostic evaluation of the eye.
This includes (but is not limited to) patients with
the following disabilities or challenges:

There is a general requirement that the patient be able to
sit upright and be able to place their face in the chin and
forehead rest of the instrument (with or
without supplemental human or mechanical support).

Cirrus HD-OCT is designed for in-vivo viewing, axial cross-sectional,
and three-dimensional imaging and measurement of anterior and
posterior ocular structures.
