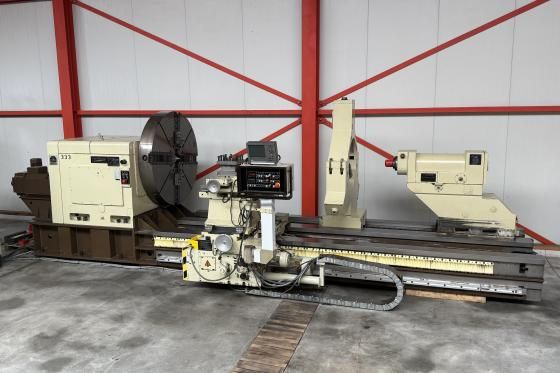

Zerbst Engine Lathe 450 rpm DP1 S3 x 3700

ZERBST DP1 S3 x 3700
1992

Technical data
Turning length: 3700 mm
Swing over bed: 2000 mm
Swing over cross slide: 1600 mm
Spindle bore: 100 mm
Spindle power: 55 kW
Bed width: 1590 mm
Tailstock spindle diameter: 220 mm
Pinole stroke: 210 mm
Spindle speeds: 3.55–450 rpm
X-axis feed rate: 5000 mm/min
Z-axis feed rate: 5000 mm/min
Workpiece load: 12500 kg
Machine length: 8500 mm
Machine width: 3400 mm
Machine height: 2060 mm
Machine weight: 27400 kg

Equipped with
4-jaw chuck 1600 mm
Heidenhain digital readout
Steady rest 710 mm
Powered tailstock
Thread cutting
Triple guideway cast iron bed design
Suitable for turbine rotors
Suitable for electric motor anchors
Suitable for reactor vessels
Suitable for cylinders
Suitable for rope pulleys
Suitable for marine propulsion shafts
Suitable for castings
Suitable for shafts
Suitable for cement industry applications
