1/1

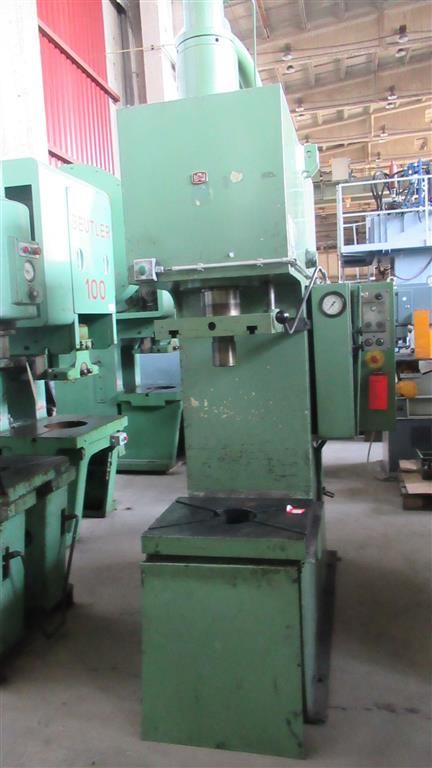

Zeulenroda PYE 40 S1 40 t
Ref :
2741684-3-AW
Condition :
Used
Manufacturer :
Zeulenroda
Model :
PYE 40 S1
Pressure :
40 t
Year(s) :
1976
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force 40 t
Stroke 500 mm
Throat depth 360 mm
Max. distance table to ram 800 mm
Daylight dimension table/slide up 600 mm
Ram stroke 500 mm
Ram speed forward 0.100 m/s
Ram speed reverse 0.450 m/s
Table dimensions 750 x 500 mm
Passage inside table 200 mm
Ram surface area 360 x 450 x 72 mm
Mortise hole in ram 40 x 75 mm
Height over floor 700 mm
Total power requirement 13 kW
Machine weight approx. 3.2 t
Machine dimensions approx. 1.75 x 1.15 x 2.95 m
Equipped With:
Operation via two-hand control panel
Operation via one-hand control panel
