1/1

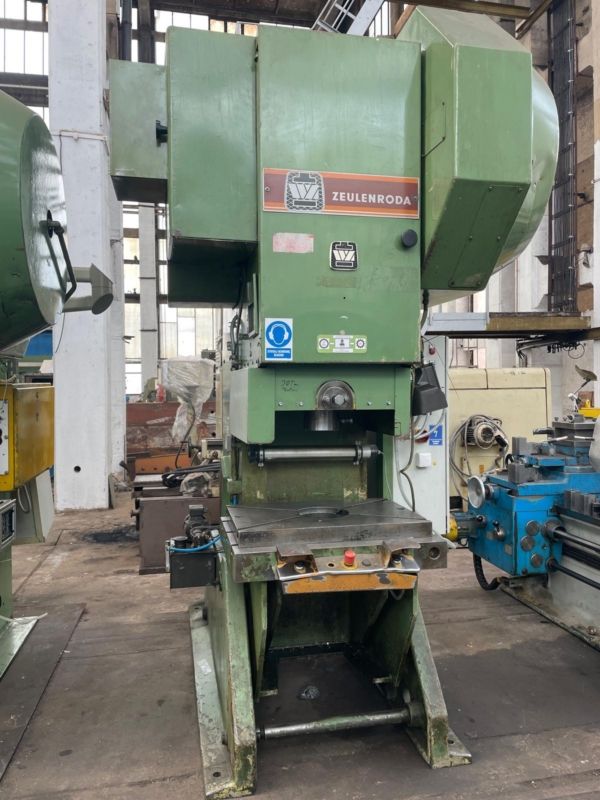

WMW, Zeulenroda PED 63/3 63 T
Ref :
2806010-3-GO
Condition :
Used
Manufacturer :
WMW, Zeulenroda
Model :
PED 63/3
Pressure :
63 T
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Type: Press
Press force: 63 T
Working capacity: 2,200 Nm
Torque: 12,500 Nm
Working power: 5.5 kW
Stroke rate: 56 / 90 spm
Continuous stroke rate: 90 spm
Maximum sheet thickness: 6.3 / 3.2 mm
Cutting area: 1,600 mm2
Distance between uprights: 320 mm
Throat depth: 315 mm
Stroke: 8–120 mm
Ram adjustment: 70 mm
Ram surface: 400 × 500 mm
Ram hole diameter: 40 mm
Mortise: 92 mm
Installation height: 560 mm
T-slots: 2
Total power requirement: 6 kW
Machine weight: 5.5 t
