1/1

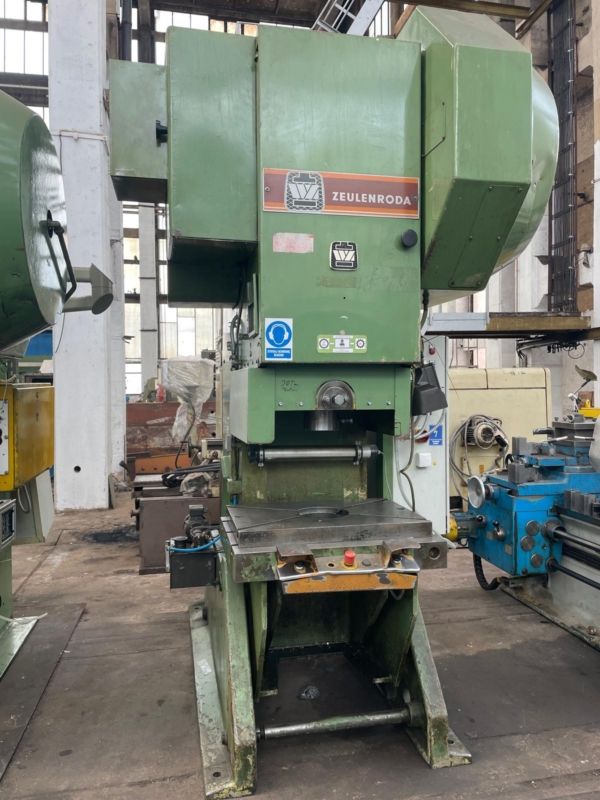

WMW, Zeulenroda PED 63/3 63 t
Ref :
2795492-3-MT
Condition :
Used
Manufacturer :
WMW, Zeulenroda
Model :
PED 63/3
Pressure :
63 t
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press Force: 63 t
Number of Strokes Continuous: 90 strokes/min
Working Capacity: 2200 Nm
Torque: 12500 Nm
Working Power: 5.5 kW
Stroke Rate: 56 / 90 strokes/min
Sheet Thickness Max.: 6.3 / 3.2 mm
Cutting Area: 1600 mm²
Clearance Between Uprights: 320 mm
Projection: 315 mm
Plunger Stroke Min.: 8 mm
Plunger Stroke Max.: 120 mm
Plunger Adjustment: 70 mm
Plunger Surface: 400 x 500 mm
Pivot Hole in Plunger: 40 mm
Mortise: 92 mm
T-Slots: 2
Total Power Requirement: 6 kW
Machine Weight: 5.5 t
Nominal Force: 630 kN
Installation Height: 560 mm
