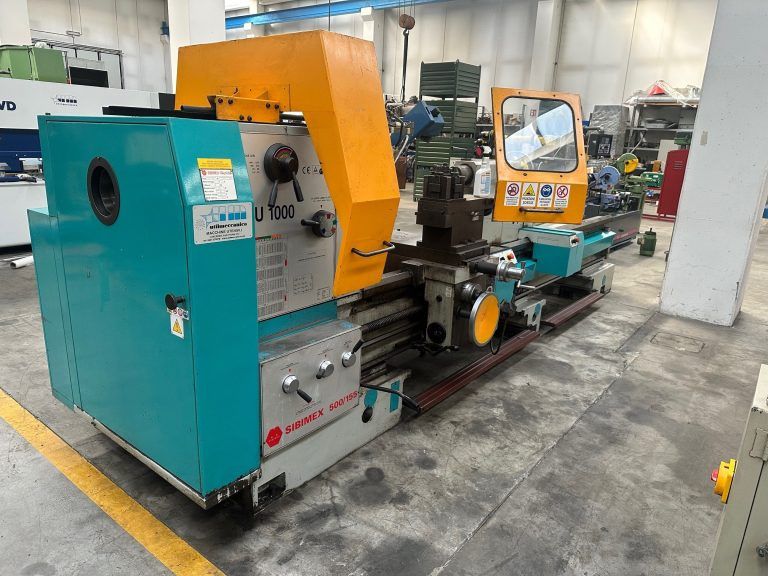

ZMM Engine Lathe 1250 rpm SIBIMEX CU1000

Center height 500 mm
Swing over bed 1090 mm
Swing over carriage 690 mm
Swing in gap 1250 mm
Bed width 700 mm
Distance between centers 3000 mm
Spindle bore 155 mm
Spindle speed range 6.3 – 1250 rpm
Number of spindle speeds 24
Motor power 22 kW
Bed with gap and removable bridge
Hardened and ground guideways
2-axis digital readout
Emergency brake with rack system
Mechanical multi-disc clutch
Rapid longitudinal feed
Rapid cross feed
Automatic feed and threading gearbox
Automatic lubrication for gearbox
Self-centering chuck
4-jaw independent chuck
Steady rest
Follow rest
Motorized rotating tailstock
Coolant system with pump
Quick change toolpost
Flange for chuck
Dead center
Reduction sleeve
Spindle guard
Toolpost guard
Rear sheet metal guard
Instruction manual
CE declaration
Weight 8000 kg
