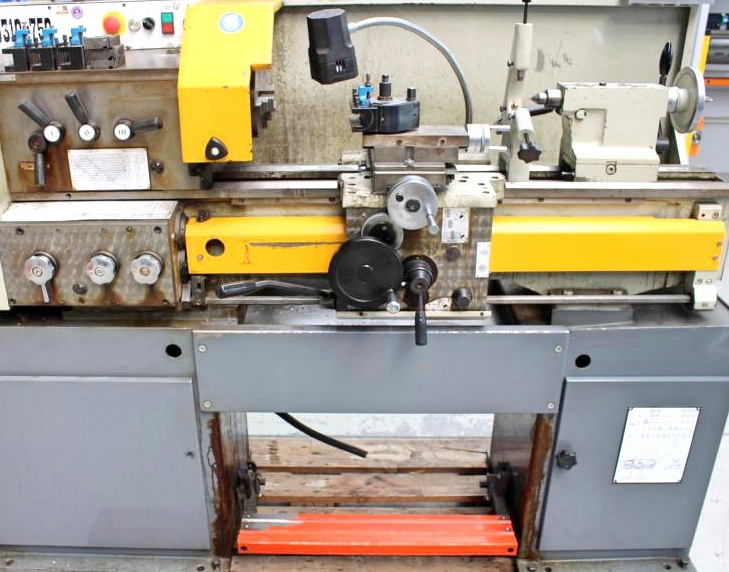

ZMM Sliven Engine Lathe 2200 rpm HU 310

Turning length 750 mm
Turning diameter over bed 310 mm
Turning diameter over slide rest 175 mm
Spindle bore 32 mm
Tailstock quill taper MT 3
Turning speeds 85–2200 rpm
Bed width 200 mm
Spindle taper DIN 55027 GR 5
Total power requirement 2.2 kW
Machine weight approx. 710 kg
Machine dimensions (L × W × H) 1884 × 717 × 1262 mm
Spindle taper 4.5 M
Metric thread range 0.1–28 mm
Thread module range 0.1–1.75
Thread DP range 4–70
Cross slide travel 150 mm
Top slide travel 95 mm
Tailstock quill diameter 40 mm
Tailstock quill travel 100 mm
Motor power 2.2 kW
Weight 770 kg

3-jaw lathe chuck Ø 160 mm with replacement jaws
Digital display "NEWALL" front left
MULTIFIX tool holder with 4 inserts
Fixed steady rest
Follow rest
Movable tailstock
Foot/spindle brake
Machine swing feet
User manual (PDF/NL)
