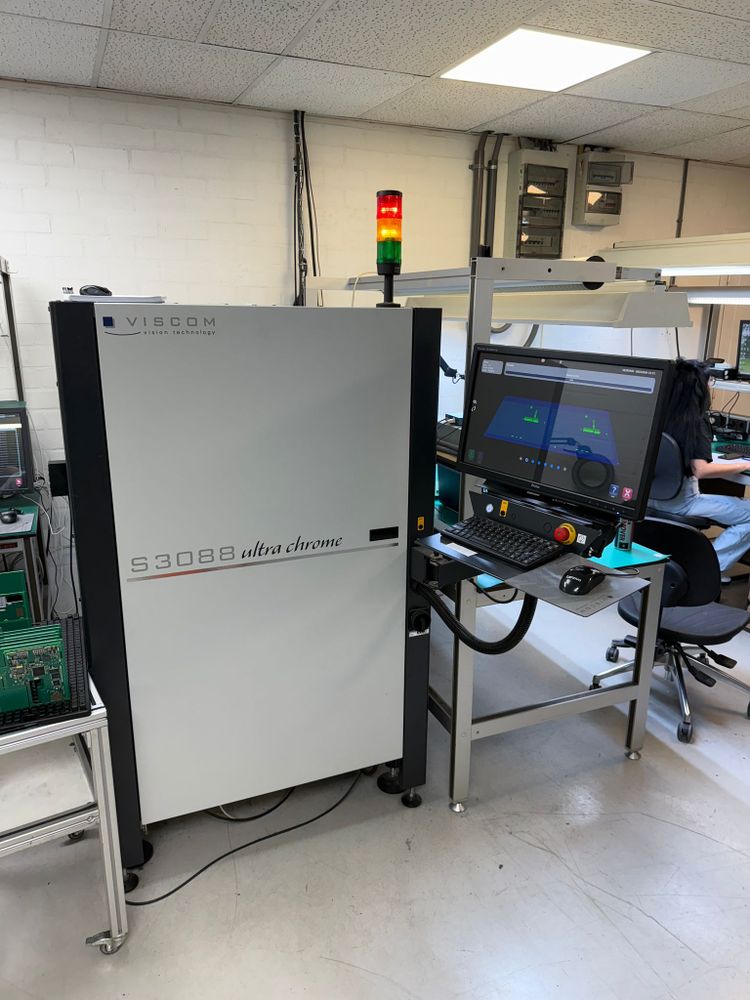

2 Viscom S3088

- Type: AOI (Automated Optical Inspection)
- Z-resolution: 0.5 µm
- Z-range: Up to 30 mm (1.2")
- Angled view cameras: Yes
- Number of megapixel cameras: 8
- Orthogonal camera: Yes
- Resolution: 10 µm
- Field of view: 50 mm x 50 mm (2" x 2")
- Inspection speed: Up to 65 cm²/s
- User interface: Viscom vVision / EasyPro
- SPC: Viscom SPC (statistical process control), open interface (optional)
- Verification station: Viscom vVerify / HARAN
- Remote diagnosis: Viscom SRC (optional)
- Programming station: Viscom PST34 (optional)
- Operating system: Windows
- CPU: Intel Core i7
- PCB max dimensions: 508 mm x 508 mm (20" x 20")
- Transport height: 850 - 950 mm ± 20 mm (33.5" - 37.4" ± 0.8")
- Width adjustment: Automatic
- Transport type: Single track
- PCB clamping: Pneumatic
- Upper transport clearance: 50 mm (2")
- Lower transport clearance: 45 mm (1.8"), up to 85 mm (3.3") optional, 40 mm (1.6") with PCB support
- Positioning/handling unit: Synchronous linear motors
- Interfaces: SMEMA
- Power requirements: 400 V, 3P/N/PE, 8 A
- Air pressure requirement: 4 - 6 bar
- System dimensions (W x H x D): 994 mm x 1565 mm x 1349 mm (39.1" x 61.6" x 53.1")
- Weight: 720 kg (1587 lbs)
