6 Grob G550 5 Axis

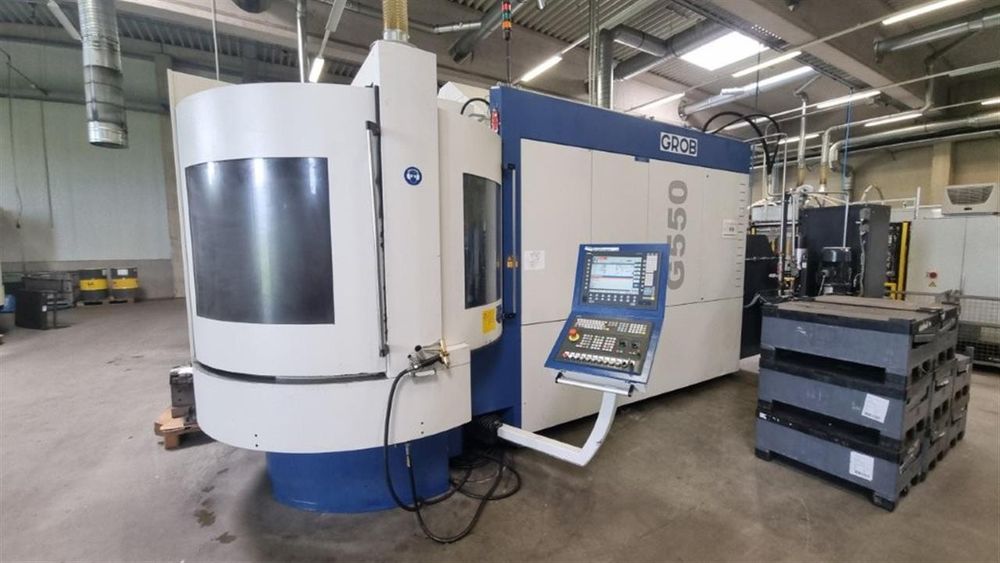

GROB G550
2013

CNC control Sinumerik 840D sl MDynamics Operate
5-axis simultaneous horizontal machining center
Controlled swivel-rotary table A/B-axis
Twin pallet changer 630 x 630 mm
6 hydraulic couplings for pallet fixture clamping
Rotary joint in A and B-axis
Special hydraulic pump for fixture
Coolant through spindle 10–80 bar
Proportional valve for pressures 10–200 bar
Electromechanical tool-length measuring device GROB
BLUM laser for tool measuring
Tool coding
Chip conveyor
3D touch probe M&H
Electric handwheel Siemens HT8
Coolant gun
Coolant shower
Air gun
Oil skimmer
Automatic door
Remote diagnosis

X travel 800 mm
Y travel 950 mm
Z travel 1020 mm

Spindle speed 10,000 rpm
Spindle power 26/20 kW
Max spindle torque 340/262 Nm
Tool taper HSK-A 100
Tool change unit 120 positions (2×60)
Table load capacity 800 kg
Total power requirement not specified
Machine weight approx. 20 t
Machine dimensions approx. 3.3 × 6.15 × 3.2 m

Optional at extra cost:
KOMET U-axis system UAS 160-HSK100-E-Z50-1 Komtronic 50 mm travel
Special UAS 160-HSK100-E-Z-32-1 Komtronic 32 mm travel
