5 Grob G 550 5 Axis

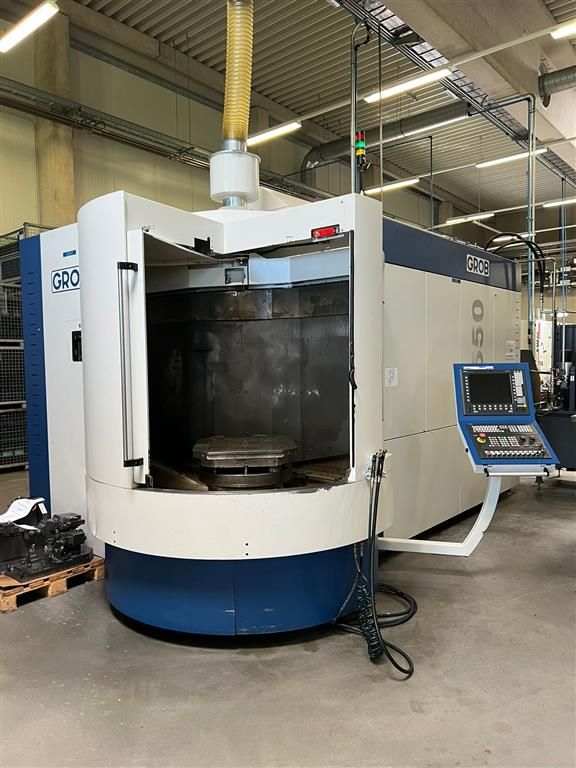

GROB G 550 (5 Machines available)
2013

X travel 800 mm
Y travel 950 mm
Z travel 1020 mm

Control Sinumerik 840D sl MDynamics Operate
Turning speeds up to 10,000 1/min
Spindle power 26/20 kW
Max torque on spindle 340/262 Nm
Tool taper HSK-A 100
Tool change unit 120 positions (2 x 60)
Pallet changer 2 x 630 x 630 mm
Table load capacity 800 kg
Total power requirement kVA (not specified)
Machine weight approx. 20 t
Machine dimensions approx. 3.3 x 6.15 x 3.2 m

5-axis simultaneous horizontal machining center
Controlled swivel-rotary table (A/B axis)
Twin pallet changer
6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B axis
Special hydraulic pump for fixture
Coolant through spindle (10-80 bar)
One channel with proportional valve for pressures 10-200 bar
Electromechanical tool-length measuring device
BLUM laser for tool measuring

Tool coding
Chip conveyor
3D touch probe M&H
Electric handwheel Siemens HT8
Coolant gun
Coolant shower
Air gun
Oil skimmer
Automatic door
Remote diagnosis

Optional (extra cost):
Two KOMET U-axis systems:
UAS 160-HSK100-E-Z50-1 Komtronic with 50 mm travel
Special UAS 160-HSK100-E-Z-32-1 Komtronic with 32 mm travel
