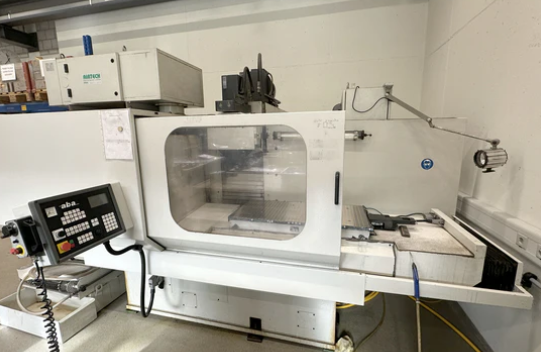

ABA EL 1006

Longitudinal travel X-axis 1300 mm
Cross travel Z-axis 600 mm
Transversal travel Y-axis 530 mm
Control ABAMATIC 1
Automatic longitudinal feed 2000–35000 mm/min stepless
Automatic cross feed 1–5000 mm/min stepless
Automatic vertical feed 1–3000 mm/min
Table length 1000 mm
Table width 500 mm
Grinding length 1000 mm
Grinding width 600 mm
Maximum table load 1000 kg
Distance to spindle centerline 700 mm
Grinding wheel diameter 400 mm
Grinding wheel width 60 mm
Maximum grinding wheel width 80 mm
Grinding wheel bore 127 mm
Grinding wheel speed 1000–2600 rpm stepless
Spindle motor power 11 kW
Fine feed resolution 1 µm
Air connection 6 bar
Voltage 3x400 V 50 Hz
Coolant system 250 l
Paper filtration system
Magnetic plate 1000 x 500 mm
Hydraulic dressing unit
Central lubrication system
Oil mist extractor AIRTECH
Electronic handwheel
Machine length 2850 mm
Machine width 1750 mm
Machine height 1850 mm
Machine weight 5600 kg
